Remove/Install Lower Radiator Shutters - AR20.20-P-3884OIB
Model 213, 238, 257
with code 2U1 (Radiator shutter)
Model 290 with Engine 256.9

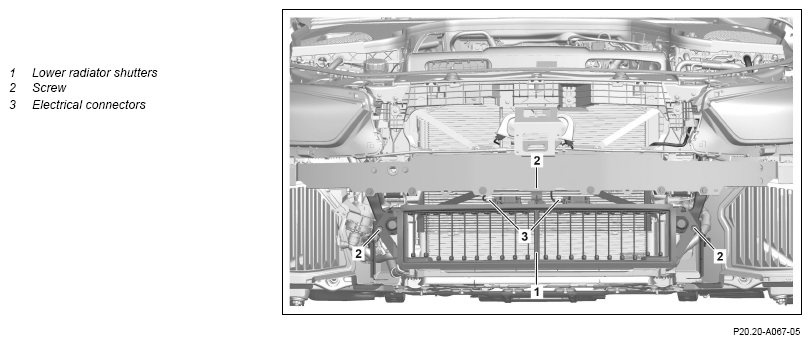

Shown on Model 257 with code 2U1 (Radiator shutters)
Shown on Model 290
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove front bumper. | Model 257 with code 2U1 (Radiator shutter) Model 290 with Engine 256.9 | AR88.20-P-2000FR |
| Model 213, 238 with code 2U1 (Radiator shutter) | AR88.20-P-2000LWE | ||
| 2 | Remove screw/bolts (2). | ||
| 3 | Unclip lower radiator shutters (1) at bottom and swivel out. | ||
| 4.1 | Release and disconnect electrical connector (3). | Model 213, 238, 257 with code 2U1 (Radiator shutter) |
|
| 4.2 | Release, disconnect electrical connectors (3) and remove lower radiator shutters (1). | Model 290 with Engine 256.9 | |
| 5 | Unclip electric line at lower radiator shutters (1) and remove lower radiator shutters (1). | Model 213, 238, 257 with code 2U1 (Radiator shutter) |
|
| 6 | Install in the reverse order. | ||
| 7 | Check lower radiator shutters (1) using diagnostic tester for proper operation. | ||
| Model 213 with code 2U1 (Radiator shutter) | AD00.00-P-2000-04B | ||
| Model 238 with code 2U1 (Radiator shutter) | AD00.00-P-2000-06LWO | ||
| Model 257 with code 2U1 (Radiator shutter) Model 290 with Engine 256.9 | AD00.00-P-2000-06FR | ||
| 8 | Read out and delete fault memory. | ||
| Model 213 with code 2U1 (Radiator shutter) | AD00.00-P-2000-04B | ||
| Model 238 with code 2U1 (Radiator shutter) | AD00.00-P-2000-06LWO | ||
| Model 257 with code 2U1 (Radiator shutter) Model 290 with Engine 256.9 | AD00.00-P-2000-06FR |
