Remove/Install Coolant Return Flow Line Of Turbocharger - AR09.41-P-0016MND

Engine 276.8 in model 213, 238

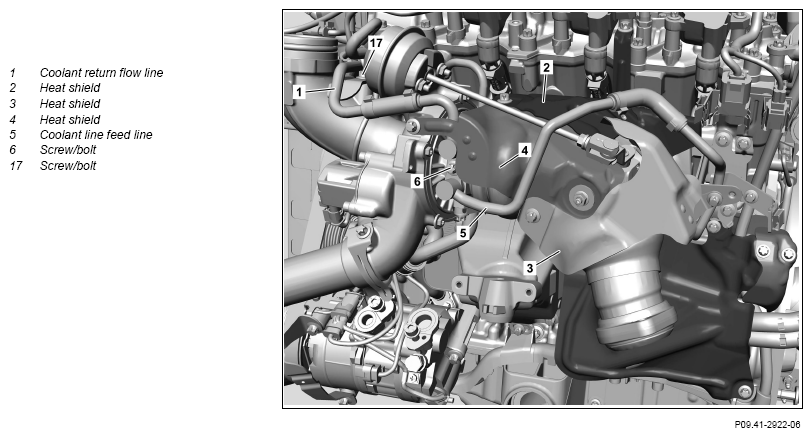

Shown on left side on engine 276.823

Fig 1: Coolant Return Flow Line Of Turbocharger Components Location - Engine 276.8 In Model 213 (Shown On Left Side On Engine 276.823)

Courtesy of MERCEDES-BENZ USA

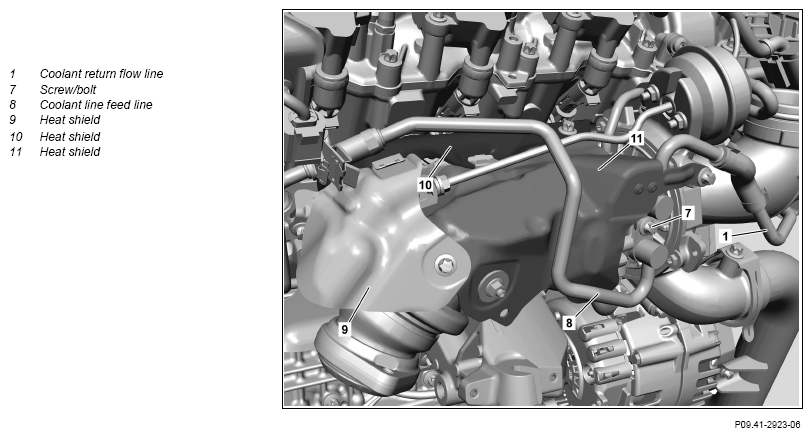

Shown on right side on engine 276.823

Courtesy of MERCEDES-BENZ USA

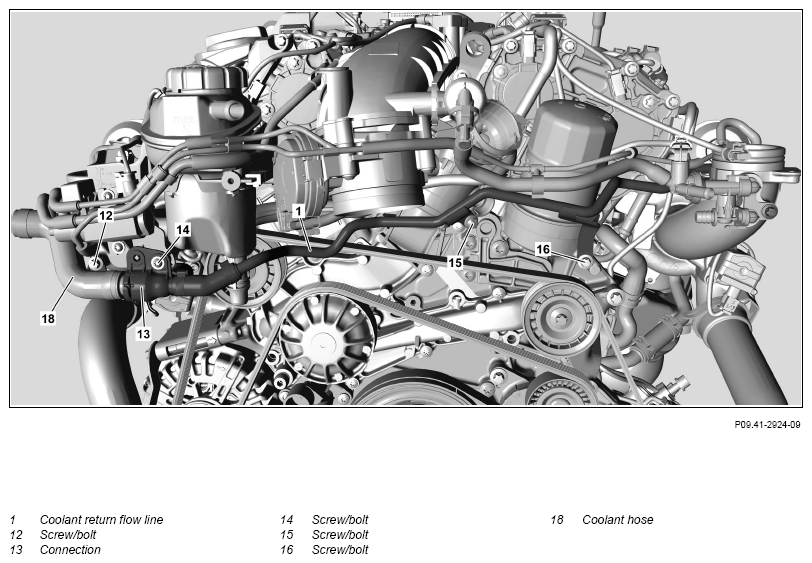

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.823

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove upper engine cover	Only install upper engine cover after the leak test.
2	Remove the lower front center and center engine compartment paneling	Only install front center and center engine compartment paneling after performing a leak test.	AR61.20-P-1105LWE
3	Drain off coolant of engine cooling system		AR20.00-P-1142OLC
4	Remove left-hand air filter housing		AR09.10-P-1151MND
5	Remove right air filter housing		AR09.10-P-1152MND
6	Remove charge air cooler and pull with attached coolant lines to the front		AR09.41-P-6817MND
7	Remove inerting system line from heat shield (4) and place to one side	Engine 276.8 in model 213, 238 with code 2U8 (Alternative refrigerant)	AR86.10-P-0319LWE
		Bolt/nut for shield attachment	*BA09.40-P-1011-01W
8	Remove inerting system line from heat shield (11) and place to one side	Engine 276.8 in model 213, 238 with code 2U8 (Alternative refrigerant)	AR86.10-P-0419LWE
		Bolt/nut for shield attachment	*BA09.40-P-1011-01W
9	Remove heat shields (3, 4, 9, 11)	Bolt, turbocharger shield bracket to cylinder head	*BA09.40-P-1012-01W
		Bolt/nut for shield attachment	*BA09.40-P-1011-01W
10	Remove heat shields (3, 4, 9, 11) upwards	The heat shields (2, 10) remain in the vehicle.
11	Remove screw/bolt (6), remove coolant line feed line (5) and seal off openings using suitable stop plugs	Replace sealing ring.
		Bolt, coolant feed/return line to turbocharger	*BA09.40-P-1008-01W
		Record plug	Fig 2
12	Remove screw/bolt (7), remove coolant line feed line (8) and seal off openings using suitable stop plugs	Replace sealing ring.
		Bolt, coolant feed/return line to turbocharger	*BA09.40-P-1008-01W
		Record plug	Fig 2
13	Remove coolant hose (18) from connection (13)		AR20.20-P-7441-01RQ
14	Remove screw/bolts (12, 14, 15, 16, 17)	Bolt for coolant line attachment	*BA09.40-P-1010-01W
15	Remove coolant return flow line (1) on left ATL and close off openings with suitable stop plugs	Replace sealing ring. Record plug	Fig 2
16	Remove coolant return flow line (1) on right ATL and close off openings with suitable stop plugs	Replace sealing ring. Record plug	Fig 2
17	Remove coolant return flow line (1) upwards
18	Install in the reverse order
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Carry out engine test run, checking the engine for leaktightness and proper operation
20	Install upper engine cover
21	Remove the lower front center and center engine compartment paneling		AR61.20-P-1105LWE

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
