Remove/Install Mercedes-Benz Intelligent Drive Control Unit - AR54.21-P-0044LWE

Model 213

with code 233 (DISTRONIC PLUS)

Courtesy of MERCEDES-BENZ USA

Shown on model 213.0 with code 489 (AIRMATIC), code 810 (Sound system) and code 881 (Remote trunk closing)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Commission Mercedes-Benz Intelligent Drive control unit (N62/4).	When replacing Mercedes-Benz Intelligent Drive control unit (N62/4).
			AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3.1	Remove left trunk lining at side.	Model 213.0/1 with code 233 (DISTRONIC PLUS)	AR68.30-P-4800LWE
3.2	Remove left load compartment trim at side.	Model 213.2 with code 233 (DISTRONIC PLUS)	AR68.30-P-1185LWE
4	Remove subwoofer in trunk.	Model 213.0/1 with code 233 (DISTRONIC PLUS) with code 811 (Advanced sound system)	AR82.62-P-7841LWE

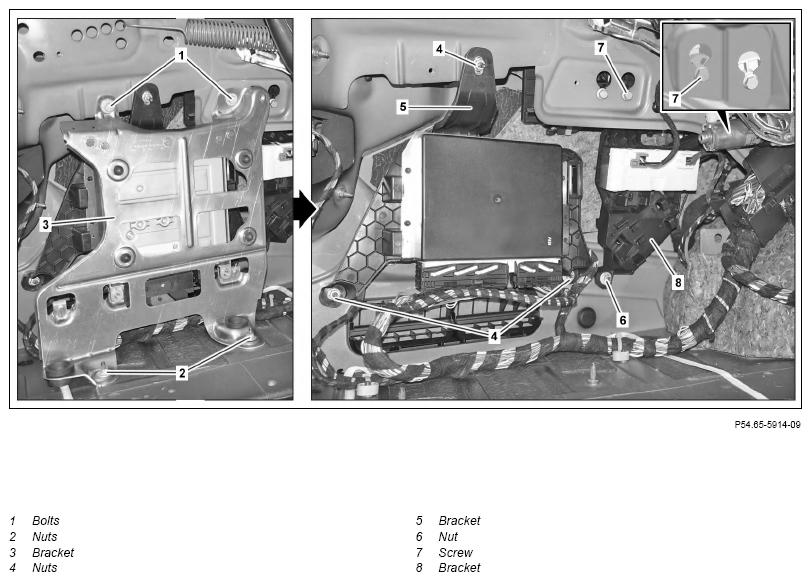

5	Remove bolts (1), unscrew nuts (2) then remove holder (3) with sound system control unit and place to one side.	Model 213.0/1/2 with code 233 (DISTRONIC PLUS) with code 810 (Sound system) Model 213.0/1 with code 233 (DISTRONIC PLUS) with code 811 (Advanced sound system) The electrical connectors need not be detached.
6	Unscrew nuts (4), remove holder (5) with control units and place to one side.	Model 213.0/2 with code 233 (DISTRONIC PLUS) with code 459 (Steel suspension with adjustable damping) Model 213 with code 233 (DISTRONIC PLUS) with code 489 (AIRMATIC) The electrical connectors need not be detached.
7	Unscrew nut (6), unfasten bolts (7), remove holder (8) with control units and place to one side.	Model 213.0/1 with code 233 (DISTRONIC PLUS) with code 881 (Remote boot lid closing) Model 213.0/2 with code 233 (DISTRONIC PLUS) with code 965 (Preinstallation for hire car) Model 213.0/2 with code 233 (DISTRONIC PLUS) with code Z90 (Multi-function control unit f.spec.funct.) Model 213.0/2 with code 233 (DISTRONIC PLUS) with code Z97 (Electronic interface) Model 213.1 with code 233 (DISTRONIC PLUS) with code 903 (Seat heater Plus for rear outer seats) The electrical connections must be disconnected.

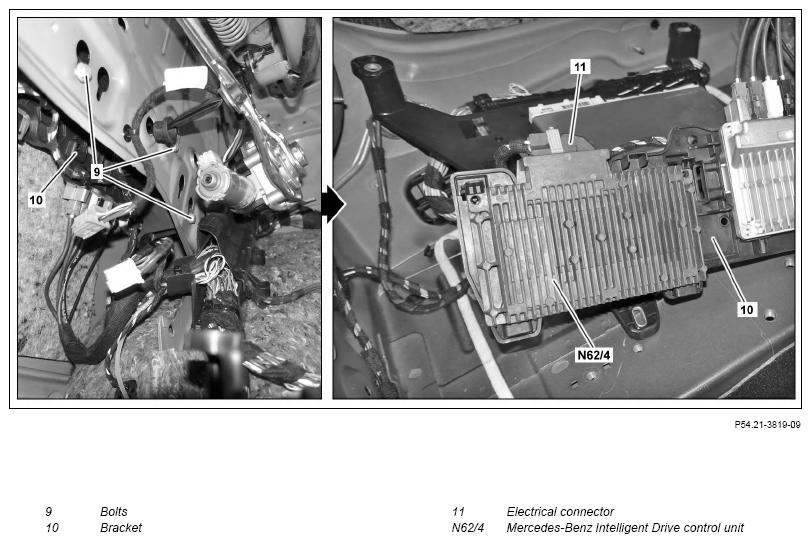

8	Unfasten bolts (9) and remove holder (10).
9	Separate electrical connector (11).
10	Unclip and remove Mercedes-Benz Intelligent Drive control unit (N62/4) from holder (10).
11	Install in the reverse order.
