Remove/Install Side Load Compartment Paneling - AR68.30-P-1185LWE

Model 213.2

MODIFICATION NOTES

01.04.2019

Operation step added.

Step 4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install

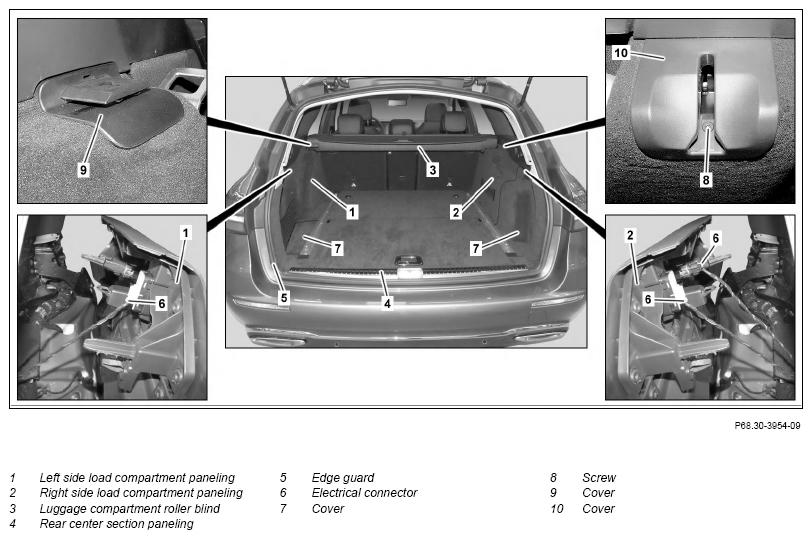

1	Release and fold over left and right seat backrest in the rear passenger compartment.
2	Release and remove retractable luggage compartment cover (3).
3	Remove trim (7) of left side load compartment trim (1) and/or right side load compartment trim (2).
4	Remove high-voltage battery cover.	Model 213.216
			AR68.80-P-6000LWH
5	Remove rear-end center-section trim (4).		AR68.30-P-4786LWT
6	Remove screw (8) and unclip cover (10).	When removing right side load compartment paneling (2).
		Dismantling tool	Fig 1
7	Unclip cover (9).	When removing left side load compartment paneling (1). Ensure that spring below upper section of cover (9) is seated correctly. Cover (9) consists of two parts.
		Dismantling tool	Fig 1

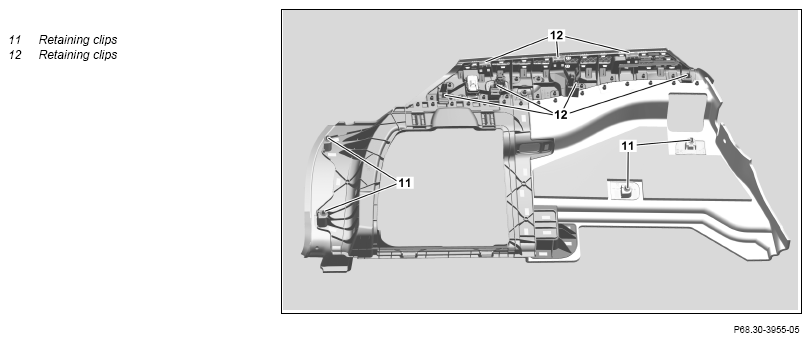

8	Unclip left side load compartment trim (1) and/or right side load compartment trim (2) from the rear to the front from retaining clips (11) and retaining clamps (12).	Ensure that edge guard (5) is seated properly.
9	Disconnect electrical connector (6) of left side load compartment trim (1) and/or electrical connector (6) of right side load compartment trim (2).
10	Remove left side load compartment trim (1) and/or right side load compartment trim (2).
11	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
