Remove/Install Interior Compartment Pre-Fuse Box - AR54.15-P-1350LW

Model 205, 213, 238, 253, 293

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.### 1#

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

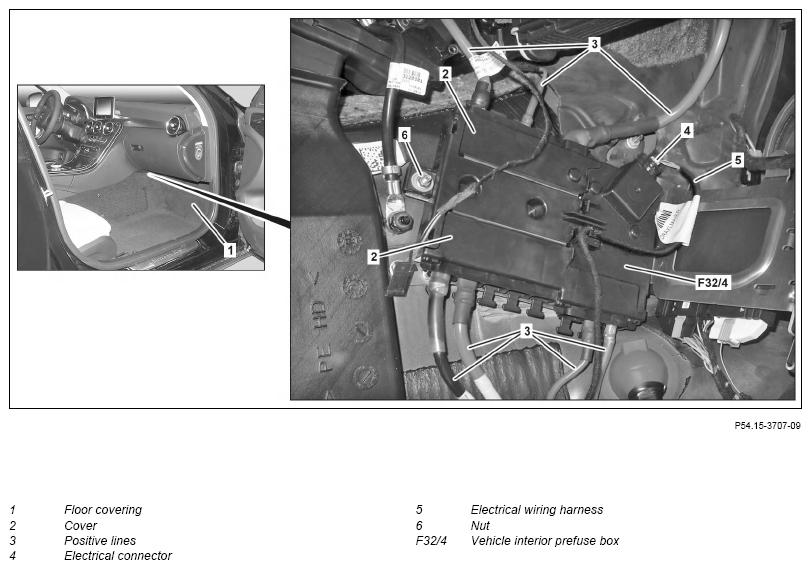

1	Remove floor covering (1) in front passenger footwell.	Model 293	AR68.80-P-0008EQ
		Model 205.### 1#, 253.### 1#	AR68.20-P-2070LW
		Model 205.### 2#, 253.### 2#	AR68.20-P-2050LW
		Model 213, 238	AR68.20-P-2065LWE
2	Remove front passenger footwell support.	Model 205.### 2#, 213.### 2#, 238.### 2#, 253.### 2#, 293.### 2#
3	Detach ground line of on-board electrical system battery.	Model 293	AR54.10-P-0003EQ
		Model 238	AR54.10-P-0003LWO
		Model 205, 253 Model 213	AR54.10-P-0003LW
4	Open covers (2).
5	Remove positive lines (3) from vehicle interior prefuse box (F32/4).	The number of positive lines (3) varies depending on the equipment installed. The connections of the positive lines (3) are shape-coded. Nut, positive line to vehicle interior prefuse box	*BA54.15-P-1004-01K
6	Disconnect electrical connection (4).
7	Release electrical wiring harness (5) from vehicle interior prefuse box (F32/4) and place to one side.
8	Remove nut (6).
9	Remove vehicle interior prefuse box (F32/4).
10	Install in the reverse order.

FUSE AND RELAY BOX

Number	Designation			Model 205	Model 213
BA54.15-P-1004-01K	Nut, positive line to vehicle interior prefuse box	M6	Nm	8	8
		M8	Nm	16	16

FUSE AND RELAY BOX

Number	Designation			Model 238	Model 253
BA54.15-P-1004-01K	Nut, positive line to vehicle interior prefuse box	M6	Nm	8	8
		M8	Nm	16	16

FUSE AND RELAY BOX

Number	Designation			Model 293
BA54.15-P-1004-01K	Nut, positive line to vehicle interior prefuse box	M6	Nm	8
		M8	Nm	16
