Remove/Install Front Floor Covering On Passenger Side - AR68.20-P-2065LWE

Model 213, 238

MODIFICATION NOTES

20.03.2017

Operation step sequence exchanged.

Steps 2 and 3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach driver's seat and tilt toward rear		AR91.10-P-1000LW
		Do not disconnect electrical connectors.
2	Remove door sill molding (2)	Model 238	AR68.30-P-4100CLW
		Model 213	AR68.30-P-4100LW
3	Remove paneling below instrument panel on passenger side		AR68.10-P-1502LWE

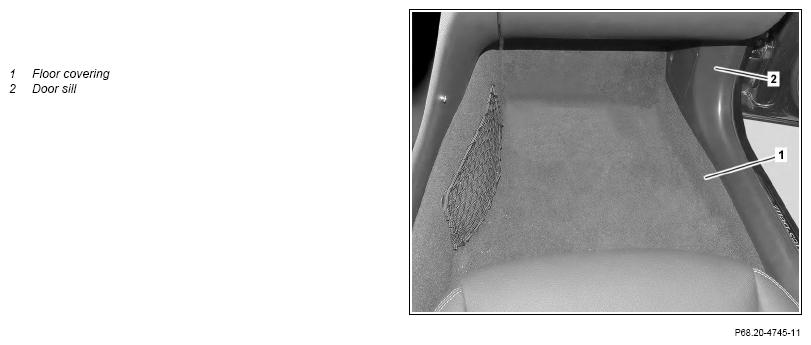

4	Remove floor covering (1) from front to rear	Use assembly wedge in center console area. Position floor covering (1) below center console.
		Mounting wedge	Fig 1
5	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
