Remove/Install HERMES Antenna - AR82.95-P-0030MFV
Model 118.3, 177.1/9
with code 362 (HERMES communications module LTE)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear shelf. | Model 177.1/9 with code 362 (HERMES communications module LTE) except code 287 (Folding seat backrests in rear passenger compartment) |
AR68.30-P-4581MFW |
| Model 118.3, 177.1 with code 287 (Folding seat backrests in rear passenger compartment) with code 362 (HERMES communications module LTE) |
AR68.30-P-4581MFV | ||
| 2 | Remove rear shelf damping. | ||

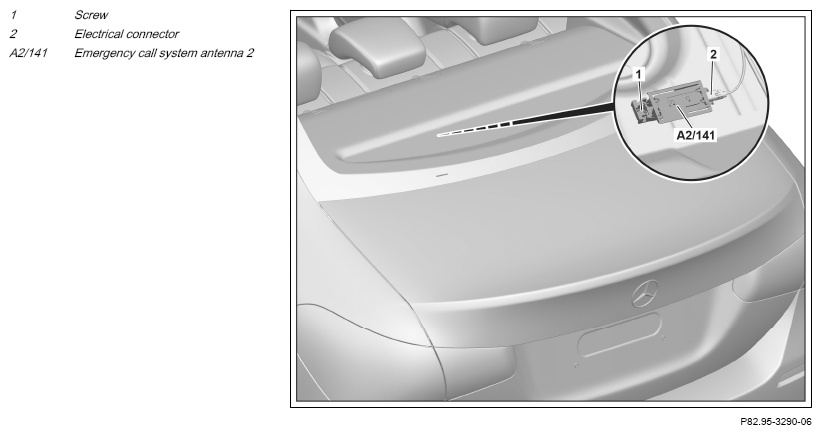

| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove screw/bolt (1). | ||
| 5 | Remove emergency call system antenna 2 (A2/141). | ||
| 6 | Install in the reverse order. |
