Remove/Install Fan For 48 V Battery - AR54.10-P-6458MFA
Model 118, 177, 247
with code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left side trim from trunk. | Model 118.3, 177.1/9 with code B01 (48V technology) | AR68.30-P-4800MFV |
| Model 118.6 with code B01 (48V technology) | AR68.30-P-4800MFD | ||
| Model 247.0/7 with code B01 (48V technology) | AR68.30-P-4800MFB | ||
| Model 177.0 with code B01 (48V technology) | AR68.30-P-4800MFA | ||

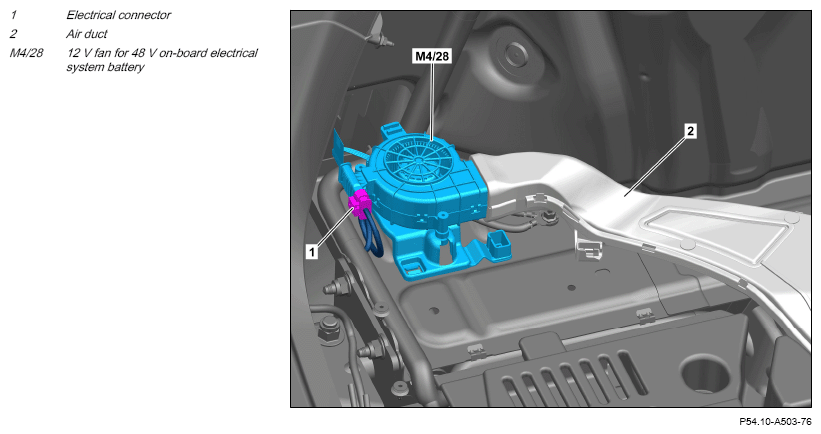

| 2 | Release electrical connector (l) and disconnect. | ||
| 3 | Remove air duct (2) from 12 V fan for 48 V battery (M4/28). | ||
| 4 | Remove and pull out 12 V fan for 48 V battery (M4/28). | ||
| 5 | Install in the reverse order. |
