Remove/Install Side Paneling In Trunk - AR68.30-P-4800MFV
Model 118.3, 177.1/9
Shown on model 177.1 except code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Fold forward seat backrest in left and right rear passenger compartment. | Model 118.3, 177.1/9 with code 287 (Through-loading feature) |
|
| 1.2 | Remove seat backrest in rear. | Model 118.3, 177.1/9 except code 287 (Through-loading feature) |
AR91.12-P-1713MFV |
| 2 | Remove rear-end center-section trim. | AR68.30-P-4786MFV | |
| 3 | Remove tie-down eyes (3). | *BA68.50-P-1001-03I | |

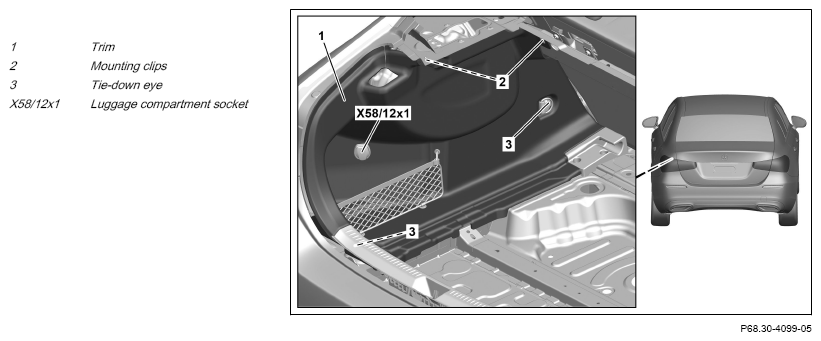

| 4 | Remove retaining clips (2). | Fig 1 | |
| 5 | Release trim (1) until electrical connector of trunk socket (X58/12x1) can be accessed. | Model 118.3, 177.1/9 with code U35 (12 V socket in load area) Only on left-hand side of the vehicle. |
|
| 6 | Release and disconnect electrical connector of trunk socket (X58/12x1). | Model 118.3, 177.1/9 with code U35 (12 V socket in load area) Only on left-hand side of the vehicle. |
|
| 7 | Remove side trim (1) in trunk. | ||
| 8 | Remove trunk socket (X58/12x1). | Model 118.3, 177.1/9 with code U35 (12 V socket in load area) When replacing trim (1) at left side of vehicle. |
|
| 9 | Install in the reverse order. |
CARGO RETAINERS
| Number | Designation | Model 118 | Model 177, 247 | |
|---|---|---|---|---|
| BA68.50-P-1001-03I | Screw/bolt for tie-down eye | Nm | 24 | 24 |
