Remove/Install Battery Management Control Unit - AR54.21-P-2060MFA
Model 118, 177, 247
with code BHF (PB300 battery (2P100S+))
with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove right front seat. | AR91.10-P-1000MFA | |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove right B-pillar trim. | AR68.30-P-4705MFA | |

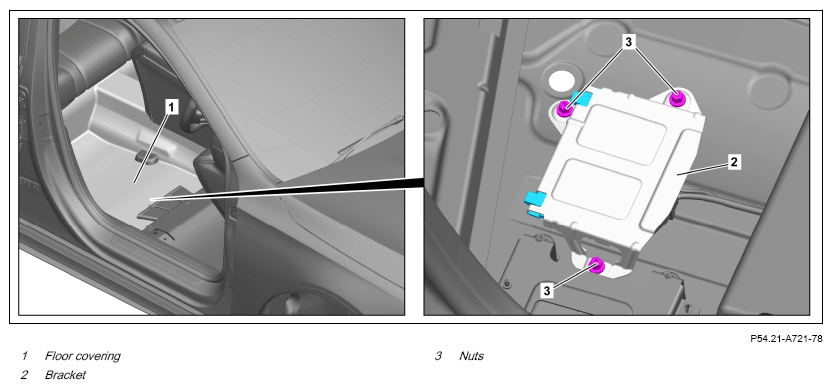

| 4 | Lift floor covering (1) until holder (2) is accessible. | ||
| 5 | Remove nuts (3). | ||
| 6 | Remove holder (2) until electrical connectors on gateway control unit (N93/13) are accessible. | ||
| 7 | Release and disconnect electrical connectors at gateway control unit (N93/13). | ||
| 8 | Take out gateway control unit (N93/13) with holder (2). | ||

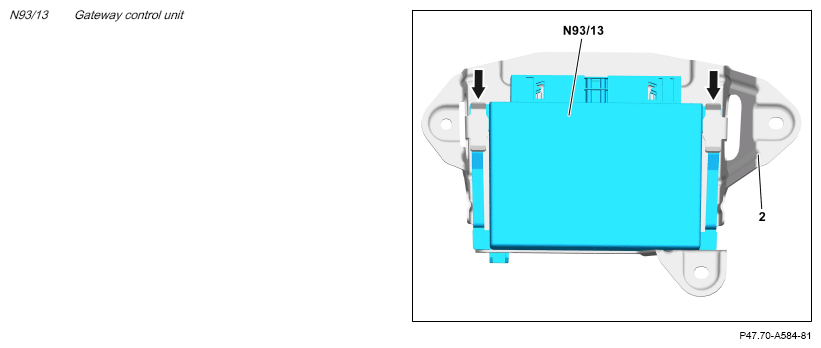

| 9 | Release gateway control unit (N93/13) from holder (2) (arrows) and remove. | ||
| 10 | Install in the reverse order. | ||
| 11 | Commission gateway control unit (N93/13). | If gateway control unit (N93/13) was replaced. | |
| AD00.00-P-2000-06MFA |
