Remove/Install B-Pillar Trim - AR68.30-P-4705MFA
Model 118, 177, 243, 247
MODIFICATION NOTES
| 26.10.2020 | Operation step removed. | Release edge guard in working area. |
Shown on model 177.0
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1.1 | Remove rear cover of outer seat track. | Model 247 |
|
| 1.2 | Unclip cover at lower B-pillar trim (2). | Model 243 | |
| 2 | Remove screw (3) of seat belt end fitting at front. | *BA91.40-P-1003-01X | |
| 3 | Unclip upper B-pillar trim (1) at arrows (A). | ||
| 4 | Slightly remove roof lining (4) from upper B-pillar trim (1), guide upper B-pillar trim (1) out of roof lining (4) and out of body shell aperture (arrows B). | Carefully perform work on roof lining (4). Window airbag (5) will otherwise be damaged. Carefully remove roof lining (4) from upper B-pillar trim (1). Roof lining (4) will otherwise be damaged. |
|
| 5 | Guide seat belt out of upper B-pillar trim (1) and remove upper B-pillar trim (1). | ||
| 6 | Remove front door sill. | AR68.30-P-4101MFA | |
| 7 | Release side trim in rear in area of lower B-pillar trim (2). | Model 243.7 | AR68.30-P-4780EQA |
| Model 243.6, 247.6 | AR68.30-P-4780MFX | ||
| Model 118.3, 177.1/9, 247.0 | AR68.30-P-4780MFV | ||
| Model 177.0 | AR68.30-P-4780MFA | ||

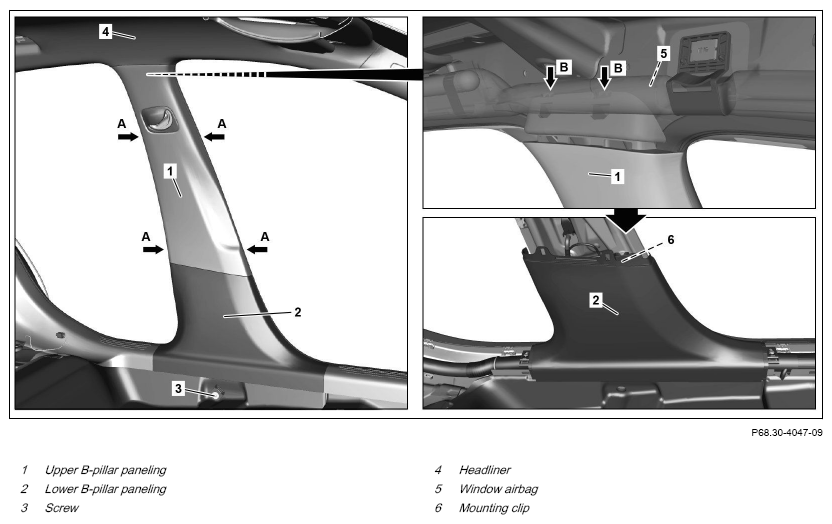

| 8 | Unclip retaining clip (6). | Fig 1 | |
| 9 | Remove lower B-pillar paneling (2) upward. | ||
| Check | |||
| 10 | Check retaining clip (6) of lower B-pillar trim (2). | If retaining clip (6) is damaged, ↓ Replace retaining clip (6). |
|
| 11 | Check retaining clips of upper B-pillar trim (1) for correct seat and for damage. | If retaining clips are damaged, ↓ Replace retaining clips. |
|
| 12 | Install in the reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.40-P-1003-01X | Bolt, front belt end fitting | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 243 | Model 247 | |
|---|---|---|---|---|
| BA91.40-P-1003-01X | Bolt, front belt end fitting | Nm | 35 | 35 |
