Remove/Install Oil Dipstick Tube - Ar18.40-D-3520TSC
Engine 274 in model 907
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

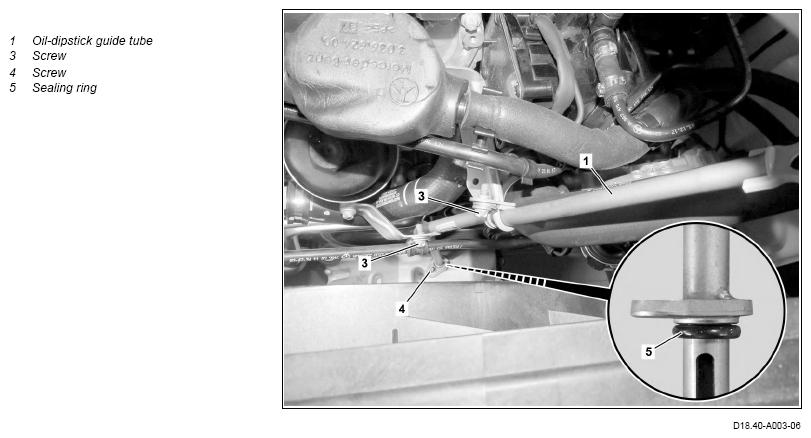

| 1 | Remove screw/bolts (3). | *BA00.10-N-1002-01A | |
| 2 | Unscrew screw (4). | *BA01.45-N-1006-01 BA | |
| 3 | Remove oil dipstick tube (1) upward. | ||
| 4 | Check sealing ring (5) for damage. | Loctite 7063 (400 ml) cleaning spray If the sealing ring (5) is damaged, ↓ replace sealing ring for oil dipstick tube. |
*BR00.45-Z-1046-04A |
| AR18.40-S-3515-01EG | |||
| Clean | |||
| 5 | Clean seat of the sealing ring (5) in the oil pan. | Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise. Loctite 7063 (400 ml) cleaning spray |
*BR00.45-Z-1046-04A |
| 6 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run; check engine for leak tightness while doing so. |
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA01.45-N-1006-01BA | Bolt, guide tube for oil dipstick to oil pan | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
