Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning
from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A |
| |
Notes on avoiding damage through contamination and foreign objects |
|
AH00.00-P-5000-01A |
| |
Notes on coolant |
|
AH20.00-N-2080-01A |
| |
Notes on coolant level |
|
AH20.00-P-1142-01CW |
| |
Drain off |
|
|
| 1 |
Raise vehicle. |
|
AR00.60-D-1000-04TS |
| Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 2 |
Open cap slowly, relieve overpressure and unscrew from coolant expansion reservoir. |
|
|
| 3 |

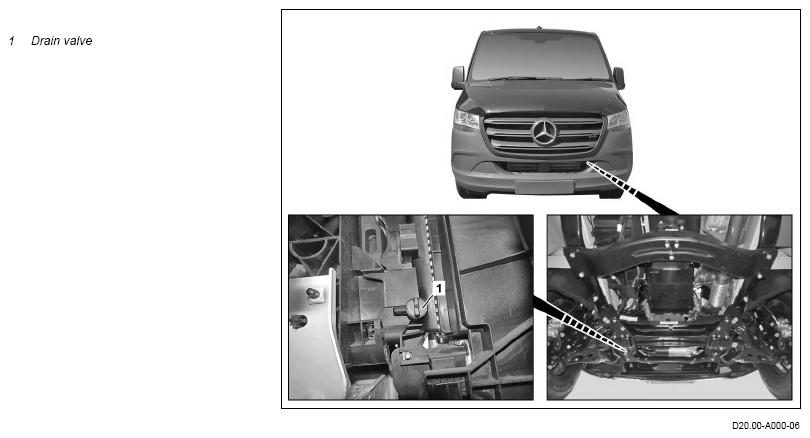

Attach drain hose at drain valve (1). |
Cooler vacuum filling device |
Fig 2 |
| 4 |
Open drain valve (1) and drain off coolant. |
|
|
| 5 |
Close drain valve (1). |
Drain screw at cooler (reference value) |
*BA20.20-N-1001-01B |
| 6 |
Remove drain hose. |
|
|
| |
Pour in |
|
|
| 7 |
Pour in coolant and bleed engine cooling system. |
|
AR20.00-D-1142-03TSC |
Coolant |
*BF20.00-N-1001-01K |
|
Cooler vacuum filling device |
Fig 2 |
|
Test cap |
Fig 1 |
 |
Check |
|
|
| 8 |
Check engine cooling system for leak tightness. |
|
AR20.00-D-1010TSC |
|
Risk of burn injuries
, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning
caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses.
Use the extraction system. Move people out ol the hazard area. |
AS49.00-Z-0001-01A |
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 9 |
Perform engine test run; in this connection, check engine cooling system for proper operation and leak tightness. |
|
|
