Pour In Coolant And Bleed Engine Cooling System - Ar20.00-D-1142-03TSC

Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notes on coolant		AH20.00-N-2080-01A
Notes on coolant level		AH20.00-P-1142-01CW
	Clip: Pour in coolant and bleed engine cooling system	GB20.00-S-0000-02A

Engine 274 in model 907

ENGINE COOLING

Number	Designation			Engine 274 in model 907
BF20.00-N-1001-01K	Coolant	Total filling capacity	Liter	≈ 10,4
		Corrosion/antifreeze down to -37 °C	Liter	≈ 5,2
		Corrosion/antifreeze down to -45 °C	Liter	≈ 5,7
		Sheet		BB00.40-P-0310-01A
		Sheet		BB00.40-P-0325-06A
		Sheet		BB00.40-P-0326-06A
		Sheet		-

Fig 1: Test Cap (210 589 00 91 00)

Fig 2: Cooler Vacuum Filling Device (285 589 00 21 00)

Do not add any sealant to the coolant. Radiator sealant can clog cooling ducts in engine.

Use vacuum-type cooling system filler for filling and bleeding.

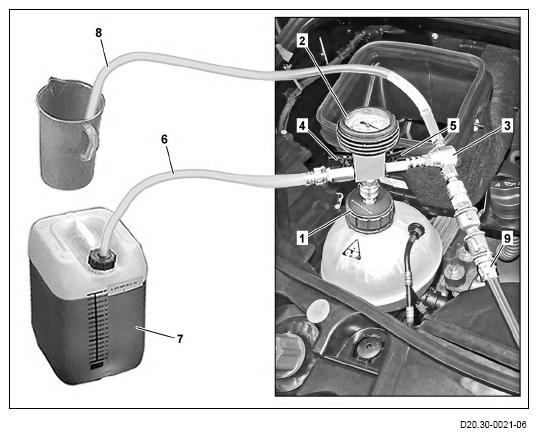

Attach tester cap (1) to coolant expansion reservoir.
Attach control unit (2) to tester cap (1).
Attach venturi nozzle (3) to control unit (2).
Close feed valve (4) and drain valve (5).
Fill coolant into coolant reservoir (7)
Make sure that there is more coolant in the coolant reservoir (7) than the engine cooling system's maximum filling capacity. Otherwise, air can enter the engine cooling system.
Attach feed hose (6) to coolant reservoir (7).
Insert waste air hose (8) into an empty container.
Connect compressed-air hose (9) to venturi nozzle (3) and apply compressed air.
Open drain valve (5).
Open feed valve (4) until the feed hose (6) has filled with coolant.
Close drain valve (5) if display of the control unit (2) is in the green area.
Remove compressed-air hose (9) from the venturi nozzle (3) and observe whether the vacuum remains stable for 30 seconds.
If this is not the case,

↓

Check hoses and connections of engine cooling system, repair if necessary and check again.
Open feed valve (4).
The engine cooling system is now filled.
Open drain valve (5) as soon as coolant no longer flows into engine cooling system.
The remaining existing vacuum reduces in the engine cooling system.
Remove control unit (2) with all connections and tester cap (1).
Adjust coolant level in coolant expansion reservoir.

Coolant level may not exceed "MAX" marking.
