Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning
caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A |
 |
Risk of injury
. Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
  |
Remove/install |
|
|
| 1 |

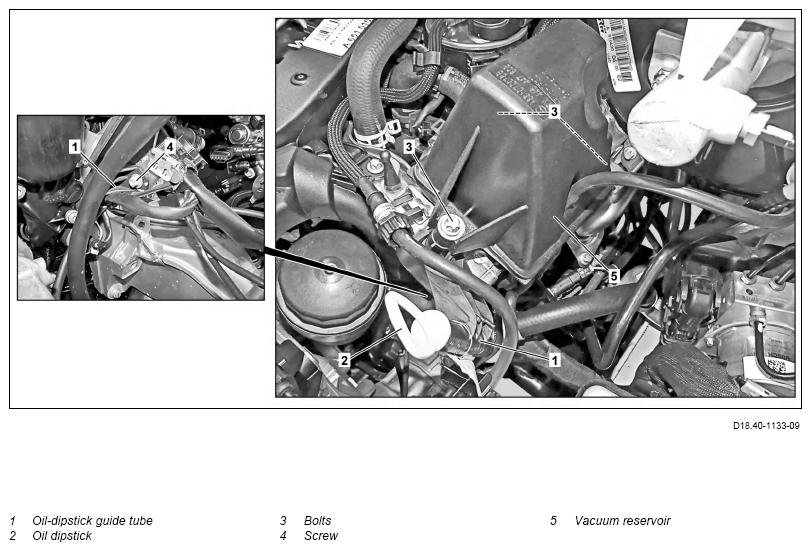

Remove oil dipstick (2). |
|
|
| 2 |
Remove vacuum reservoir (5). |
To do this, remove screws/bolts (3).
Do not remove hoses from vacuum reservoir (5).
Bolt, vacuum reservoir to bracket |
*BA07.09-N-1001-01A |
| 3 |
Unscrew bolt (4). |
M6 |
*BA00.10-N-1002-01A |
| 4 |
Remove oil dipstick tube (1) upwards from oil pan. |
: Replace sealing ring. |
|
| 5 |
Install in the reverse order. |
|
|
 |
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 6 |
Check for leaktightness when engine is running. |
Visual inspection only. |
|
