Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
  |
Remove/install |
|
|
| 1 |
Remove throttle valve actuator |
|
AR09.41-D-1330TSR |
| 2 |
Remove charge air hose downstream of the charge air cooler |
|
AR09.41-D-8625TSR |
| 3 |
Disconnect electrical connector (3) |
|
|
| 4 |

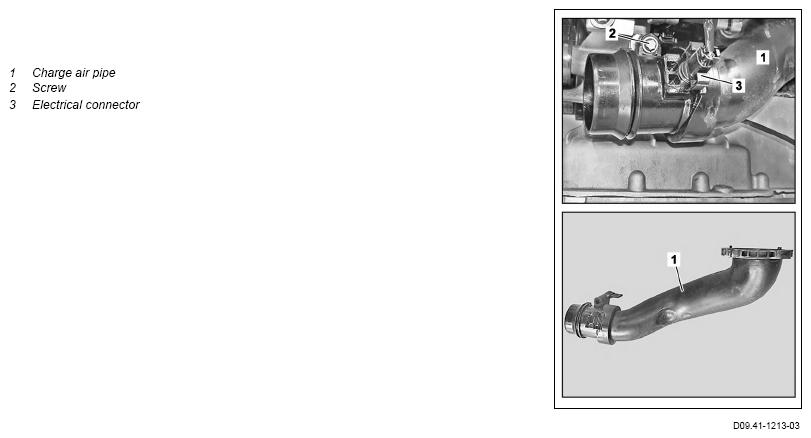

Remove charge air pipe (1) |
Unscrew screw/bolt (2) to do this. |
|
| |
|
Bolt, charge air pipe to bracket |
*BA09.41-N-1006-01TSR |
| 5 |
Install in the reverse order |
|
|
 |
Check |
|
|
 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 6 |
Check for leak tightness with engine running |
Visual inspection only. |
|
