Remove/Install Throttle Valve Actuator - Ar09.41-D-1330TSR
Engine 651 in model 907
| Remove/install | |||

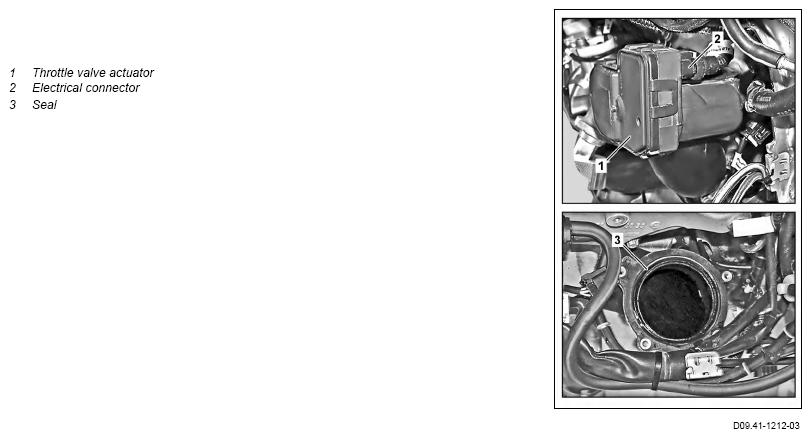

| 1 | Remove charge air line | AR09.41-D-8950TSR | |
| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove throttle valve actuator (1) | ||
| 4 | Install in the reverse order |
Engine 651 in model 907
| Remove/install | |||
| 1 | Remove charge air line | AR09.41-D-8950TSR | |
| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove throttle valve actuator (1) | ||
| 4 | Install in the reverse order |
