Adjust Front Fog Lamps - Ar82.10-D-1132TS

Model 907

with code L13 (Fog lamp with cornering light function)

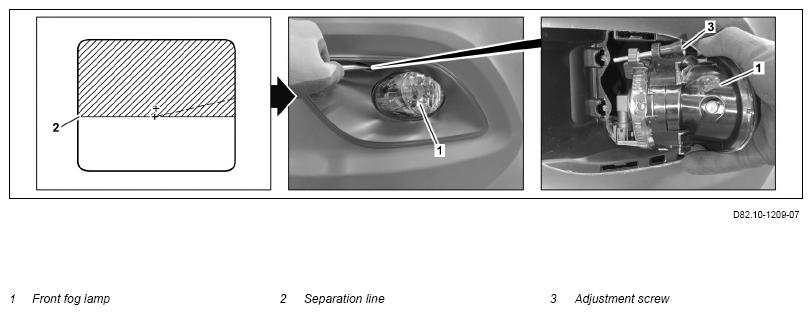

Shown on left front fog lamp (1)

	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory activity
1	Drive vehicle onto setting station for headlamp adjustment.
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B
2	Check exterior lighting for proper operation.
			AP82.10-D-8252TS
		If a component part of the exterior lighting is defective: ↓ Redress cause of defect.
3	Check vehicle for loading.	If the vehicle is loaded: ↓ Unload vehicle.
4	Correct tire pressure of front and rear wheels.
			AP40.15-D-4060TS
5	Adjust inclination of front fog lamps (1) on scale of headlamp adjuster.
	Notes on determining headlamp aiming values		AH82.10-P-1005-01A
		Note the operating instructions of the headlamp aimer.
6	Switch on front fog lamps (1).
	Checking, adjusting
7	Check setting of front fog lamps (1).	The light-dark boundary of the light beam must lie on the horizontal separation line (2) in the headlamp adjuster. If the light/dark boundary of the light beam does not lie on the horizontal separation line (2) in the headlamp adjuster: ↓ Correct adjustment by turning setting screw (3).
	Concluding tasks
8	Switch off front fog lamps (1).
9	Restore original load condition.	If the vehicle was unloaded beforehand.
10	Drive vehicle off setting station for headlamp adjustment.
