Disconnect/Connect Ground Line Of Capacitor For Park Pawl Emergency Shift Mode - Ar54.10-D-0056TS
Model 907
with code EE5 (ULTRACAP - Automatic transmission lock) with code G42 (7G-TRONIC PLUS)
Model 907
with code EE5 (ULTRACAP - Automatic transmission lock) with code G43 (9G-TRONIC)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1.1 | Remove driver seat. | Model 907 with code SB3 (Comfort version suspension seat, driver's seat) | AR91.10-D-1000TS |
| 1.2 | Remove turn plate with mounted driver's seat. | Model 907 with code SR8 (Driver's seat with rotating frame) |
AR91.10-D-1456TS |
| 1.3 | Move driver's seat to uppermost and foremost position. | Model 907 except code SB3 (Comfort version suspension seat, driver's seat), except code SR8 (Driver's seat with rotating frame) | |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Loosen seat base cover from seat base and move out of working area. | ||

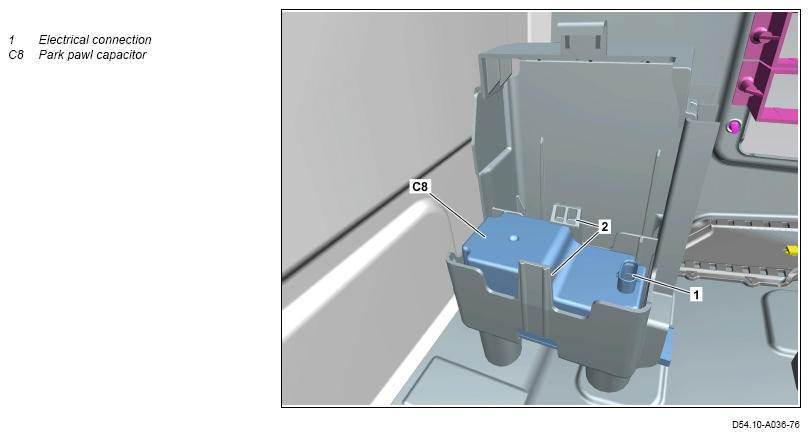

| 4 | Release and disconnect electrical connector from electrical connection (1) of park pawl capacitor (C8). | ||
| 5 | Install in the reverse order. |
