Disconnect/Connect Ground Line Of Auxiliary Battery For Park Pawl Emergency - Ar54.10-D-0026TSR

shift mode

Model 907

with code G42 (7G-TRONIC PLUS)

except code EE5 (ULTRACAP - Automatic transmission lock)

Model 907

with code G43 (9G-TRONIC)

except code EE5 (ULTRACAP - Automatic transmission lock)

Shown with code SR8 (Driver's seat swivel seat)

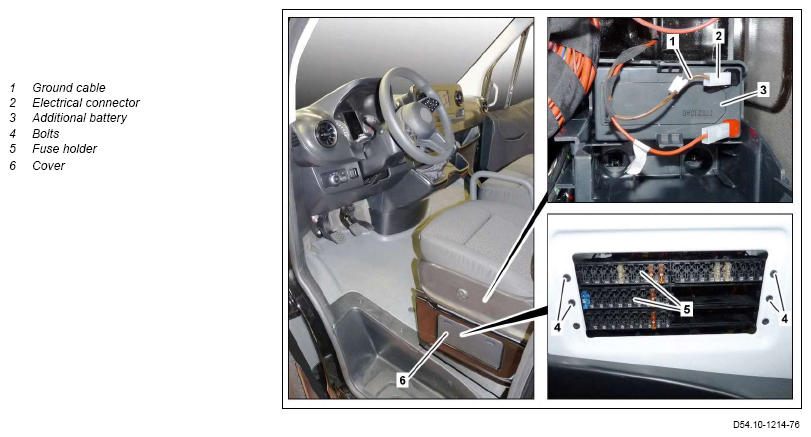

G13792379

	Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Move driver's seat to foremost and uppermost position.	Model 907 except code SB3 (Comfort version suspension seat, driver's seat), except code SR8 (Driver's seat with rotating frame)
3	Loosen seat base cover under driver's seat and take out of working area.	Model 907 except code SB3 (Comfort version suspension seat, driver's seat), except code SR8 (Driver's seat with rotating frame)
4	Remove cover (6).	Model 907 with code SB3 (Comfort version suspension seat, driver's seat) or with code SR8 (Driver's seat with rotating frame)
5	Remove screws (4) and move fuse holder (5) out of working area.	Model 907 with code SB3 (Comfort version suspension seat, driver's seat) or with code SB3 (Comfort version suspension seat, driver's seat)
6	Disconnect ground line (1) by disconnecting electrical connector (2) from auxiliary battery (3).
7	Install in the reverse order.
