Retrofit The Backup Camera Wiring Harness - An54.65-D-0030-03TS

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Overview of wiring diagrams for electrical system, equipment and instruments	Model 907	PE54.00-D-1100LAA

Model 907.6/7/8

with code E3M (MBUX multimedia system with 7-inch touch screen)

except code FR7 (Provision, electrics, reversing aid)

except code FR8 (Rear view camera)

when terminal 30 is provided via fuse block (9-pin) in seat base

Model 907.6/7/8

with code E4M (MBUX multimedia system with 10.25-inch touchscreen)

except code FR7 (Provision, electrics, reversing aid)

except code FR8 (Rear view camera)

when terminal 30 is provided via fuse block (9-pin) in seat base

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Do not kink any electric lines and ensure that they are routed without any chafing.

This prevents damage.

Shown on model 907.6

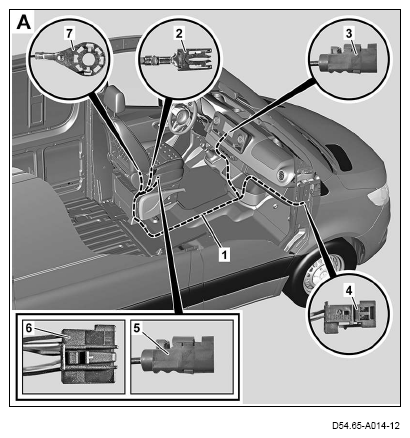

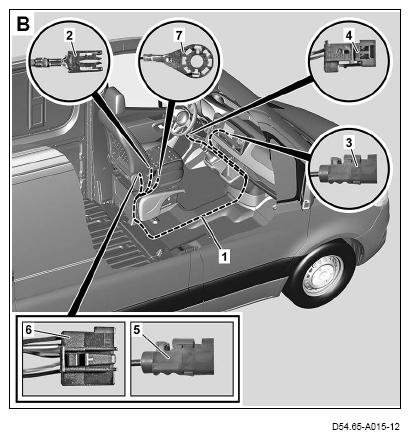

1. Route electrical wiring harness (1) as shown.

   Loosely fasten electrical wiring harness (1) in sections at factory-installed electrical wiring harness or at a suitable position using cable ties.

   Model 907

   See Fig. A.

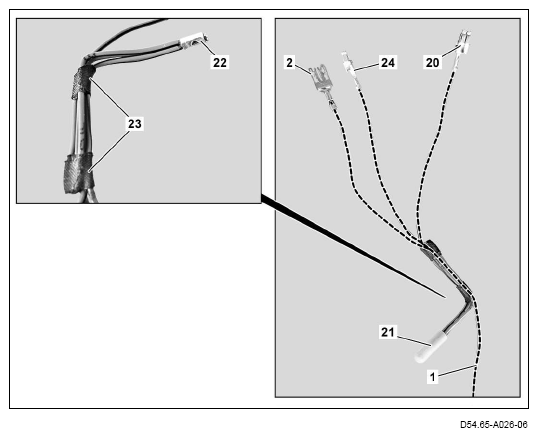

2. Disconnect fabric tape (23) of electrical wiring harness (1).
3. Remove cover (21) of line connector (22).
4. Disconnect electric lines of contact sockets (20, 24) of electrical wiring harness (1) that are no longer required from line connector (22).
5. Attach cover (21) to line connector (22).
6. Fasten cover (21) with fabric tape and insulate.
7. Attach new fabric tape (23) as shown.

   Shown on model 907

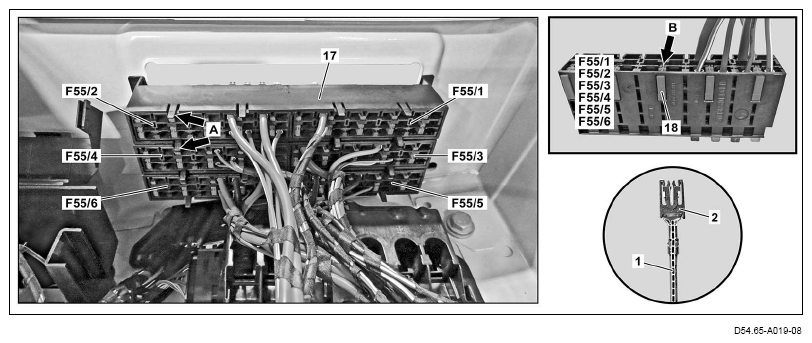

8. Remove fuse block (9-pin) from fuse holder (17) in accordance with free fuse slot.

   To do so, unlock fuse block (9-pin) (arrows A).

9. Release corresponding contact cavity of removed fuse block (9-pin).

   To do so, release lock (18) using a suitable tool. (Arrow B)

10. Install cable lug (2) of electrical wiring harness (1) for terminal 30 t into unlocked contact cavity of fuse block.
11. Lock contact cavity of fuse block (9-pin).
12. Install fuse block (9-pin) into fuse holder (17).
13. Install electrical fuse (5 A) at corresponding position in used fuse block (9-pin).

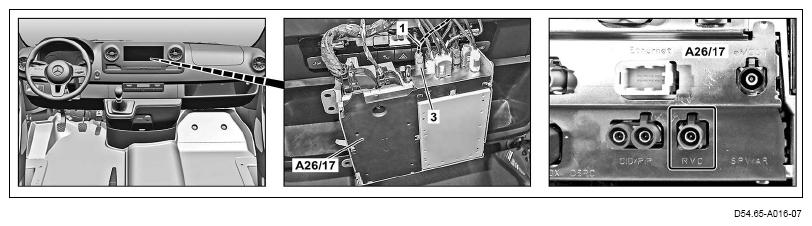

14. Connect plug (3) of electrical wiring harness (1) to head unit (A26/17).

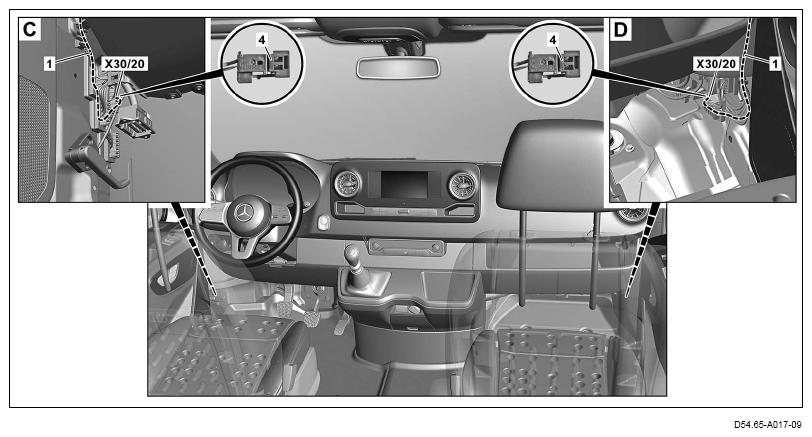

15. Connect potential distributor plug (4) of electrical wiring harness (1) to user interface CAN (CAN HMI) potential distributor electrical connector (X30/20).

    Model 907

    See fig. D.

    Shown on model 907.6

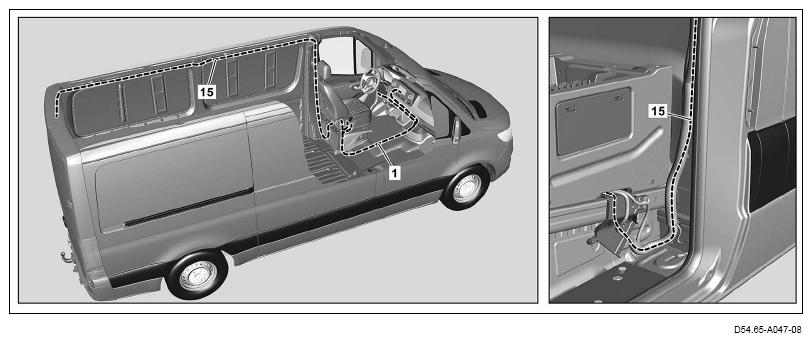

16. Route electrical wiring harness (15) as shown.

    To do so, open cable duct on B-pillar.

    Loosely fasten electrical wiring harness (15) in sections at factory-installed electrical wiring harness or at a suitable position using cable ties.

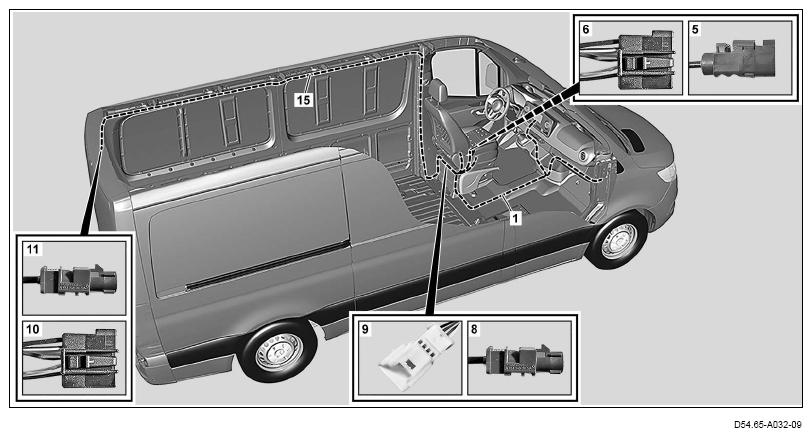

17. Connect plug (5) of electrical wiring harness (1) to plug (8) of electrical wiring harness (15).
18. Connect plug (6) of electrical wiring harness (1) to plug (9) of electrical wiring harness (15).

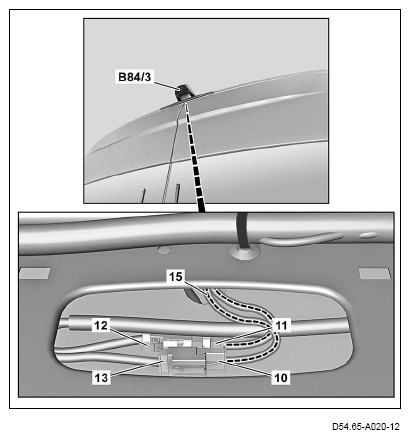

19. Connect plug (10) of electrical wiring harness (15) to plug (13) of reversing camera (B84/3).
20. Connect plug (11) of electrical wiring harness (15) to plug (12) of reversing camera (B84/3).

    Shown on model 907.6

    Shown on model 907

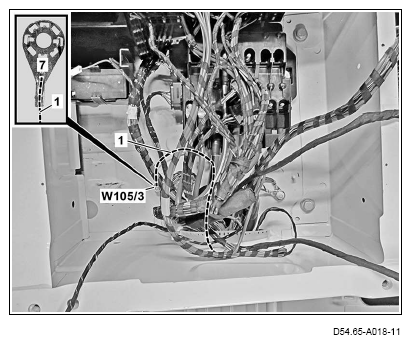

21. Remove nut of driver seat base ground point 3 (W105/3).
22. Connect cable lug (7) of electrical wiring harness (1) to driver seat base ground point 3 (W105/3).
23. Attach nut of driver seat base ground point 3 (W105/3) .
24. Tighten all cable ties of electrical wiring harnesses (1, 15).

    If necessary,

    ↓

    Strap down excess lengths of electrical wiring harnesses (1, 15) at a suitable point.
