Retrofit Reversing Camera With Display In Inside Rearview Mirror - An54.65-D-0031TSC

Model 907.1/2 with code FV1 (Pre-installation for reversing camera with inside rearview mirror display)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove seat base cover from driver's seat.

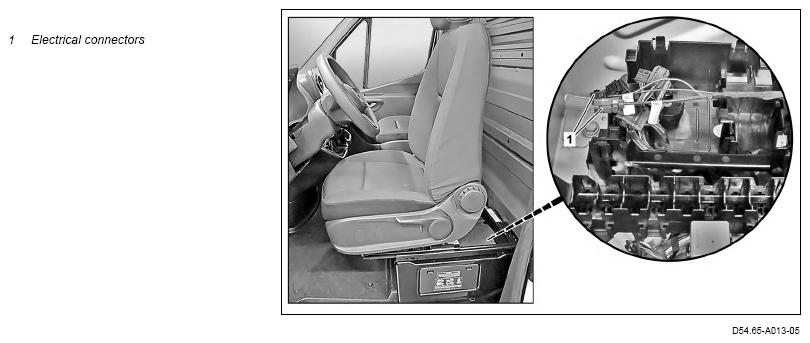

	Remove/install seat base for driver's seat	Do not remove seat base. The electrical connectors (1) of the reversing camera preinstallation are located in the seat base.	AR91.10-D-3521TS
	Install
2	Retrofit reversing camera wiring harness.	Do not kink wiring harness and make sure that it is routed such that no chafing can occur. This prevents damage. To do so, connect reversing camera wiring harness to electrical connectors (1). Secure reversing camera wiring harness section by section using cable ties at suitable points and on factory-installed electrical wiring harness. The routing of the reversing camera wiring harness to the installation location of the reversing camera varies depending on the model, wheelbase and box body.
3	Retrofit reversing camera.	Observe current body/equipment mounting directives for model 907 Only analog reversing cameras can be used.
4	Enter special equipment into on-line vehicle data card.	Model 907 when retrofitting a genuine Mercedes-Benz reversing camera Designation of corresponding special equipment: Code FR3 (reversing camera with inside rearview mirror display). Remove existing code FV1 (pre-installation for reversing camera with inside rearview mirror display).
		Model 907 when retrofitting a non-genuine Mercedes-Benz reversing camera The code FV1 (pre-installation for reversing camera with inside rearview mirror display) remains active. The special equipment codes are not changed. Attach the note "Reversing camera retrofitted as per AN54.65-D-0031TSC " in field organization texts to the KG 54.
	Check
5	Perform function check of reversing camera.	To do so, switch on ignition and engage reverse gear. Picture is shown in inside rearview mirror.
