Retrofit Antenna For Digital Tachograph (DTCO), 2ND Generation - An54.61-D-2002-01TS

Notes on carrying out repair work in the vehicle interior	AH68.00-N-0001-01S
Information on preventing damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A

Model 907 with transmission 722.9

with code ZG1 (Engageable all-wheel drive)

except code J4V (Pre-installation of EU intelligent tachograph)

except code JD2 (Tachograph digital EC with rpm + aux-recorder)

except code JD6 (Intelligent tachograph, EU)

except code JV6 (Tachograph pre-installation kit)

Model 907 with transmission 722.9

with code ZG3 (Engageable all-wheel drive with gear reduction)

except code J4V (Pre-installation of EU intelligent tachograph)

except code JD2 (Tachograph digital EC with rpm + aux-recorder)

except code JD6 (Intelligent tachograph, EU)

except code JV6 (Tachograph pre-installation kit)

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

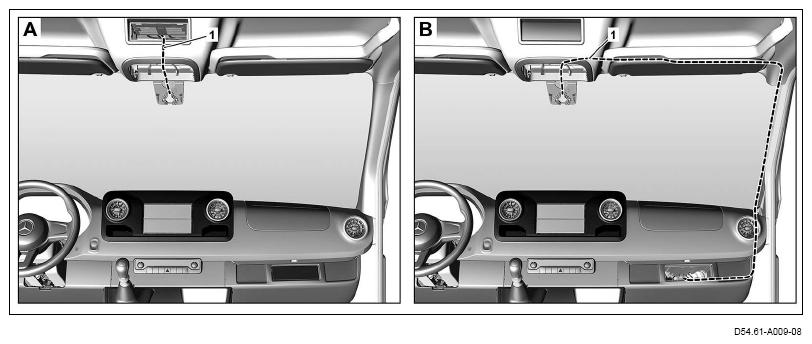

1. Route antenna line (1) as shown.

   Do not kink antenna line (1) and ensure it is routed without chafing.

   This prevents damage.

   Model 907 with code H1B (Operation of front tachograph under headliner) See Fig. A.

   Secure antenna line (1) section by section to factory-installed electrical wiring harness or at suitable position using cable ties.

   If necessary,

   ↓

   Strap down excess length of antenna line (1).

   Model 907.### 1# with code J2B (Tachograph controls under instrument panel, passenger side) See Fig. B.

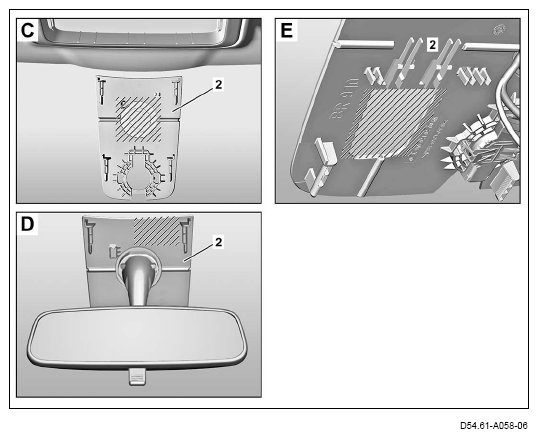

2. Clean holder (2) in crosshatched area.

   Contact surfaces must be fully free from dust and grease. Otherwise, a sufficient degree of adhesion cannot be assured.

   Model 907 with code JF1 (Rain sensor) See fig. C.

   Model 907 with code F61 (Inside rearview mirror) See fig. D.

   Model 907 up to 10.12.18 with code JA9 (Traffic Sign Assist) See fig. E.

3. Model 907 with code F61 (Inside rearview mirror) or code JF1 (Rain sensor) or up to 10.12.18 with code JA9 (Traffic Sign Assist)

   Clean contact surface of adhesive pad (4) on antenna (3).

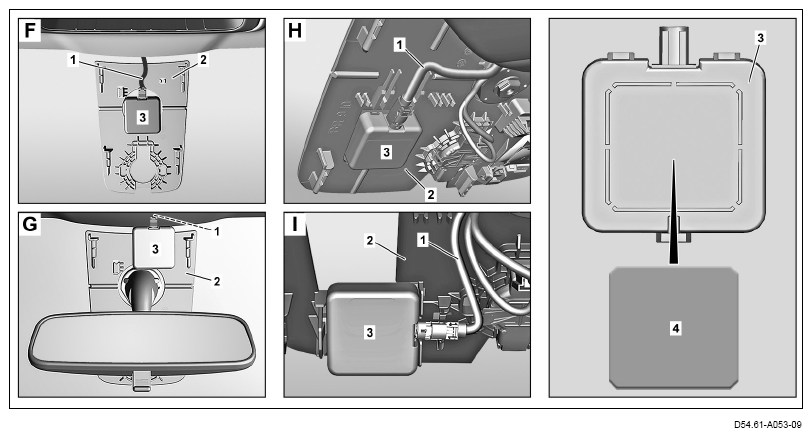

   Model 907 with code JF1 (Rain sensor) See fig. F.

   Contact surfaces must be fully free from dust and grease.

   Otherwise, a sufficient degree of adhesion cannot be assured.

4. Model 907 with code F61 (Inside rearview mirror) or code JF1 (Rain sensor) or up to 10.12.18 with code JA9 (Traffic Sign Assist)

   Remove protective foil of adhesive pad (4) and bond adhesive pad (4) to rear side of antenna (3).

5. Connect antenna line (1) to antenna (3).
6. Model 907
   1. Model 907 with code F61 (Inside rearview mirror) or code JF1 (Rain sensor) or up to 10.12.18 with code JA9 (Traffic Sign Assist)

      Remove protective foil of adhesive pad (4) and bond antenna (3) to holder (2) as shown.

      Model 907 with code F61 (Inside rearview mirror)

      See picture G.

      Model 907 up to 10.12.18 with code JA9 (Traffic Sign Assist) See picture H.

   2. Model 907 as of 11.12.18 with code JA9 (Traffic Sign Assist)

      Clip antenna (3) into holder (2) as shown.

      See picture I.
