Remove/Install Front Seat Belt Buckle - AR91.40-P-1515LF

Model 222

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by performing testing o repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Remove/install
1	Remove left or right front seat (1)		AR91.10-P-1000LF
2	Remove seat-back lining from backrest		AR91.10-P-1910LF

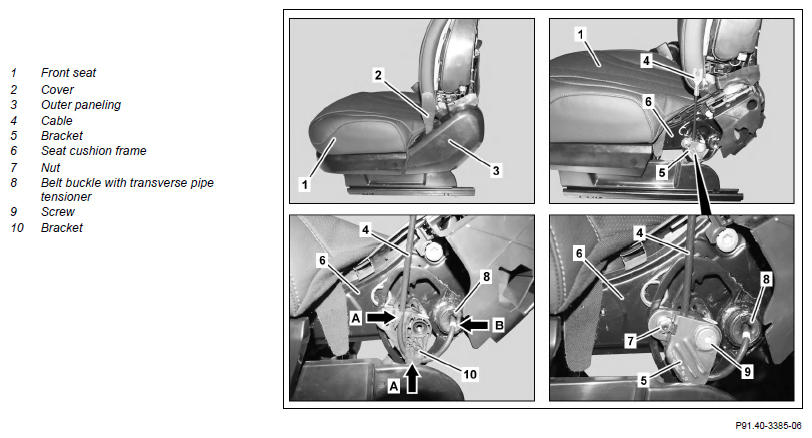

3	Unclip cover (2) on outer lining (3) and remove	Feed wire cable (4) through the cover (2).
4	Unclip outer lining (3) from front seat (1)	Ensure that outer lining (3) is correctly seated.
5	Unscrew bolt (9)	Bolt for guide (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1002-01T
6	Unscrew nut (7)	Replace nut (7). Nut for guide (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1003-01T
7	Remove bracket (5)
8	Remove wire cable (4) of seat belt buckle with transverse pipe tensioner (8) from bracket (10)	Ensure that wire cable (4) is correctly seated in supports (arrows A) of bracket (10).

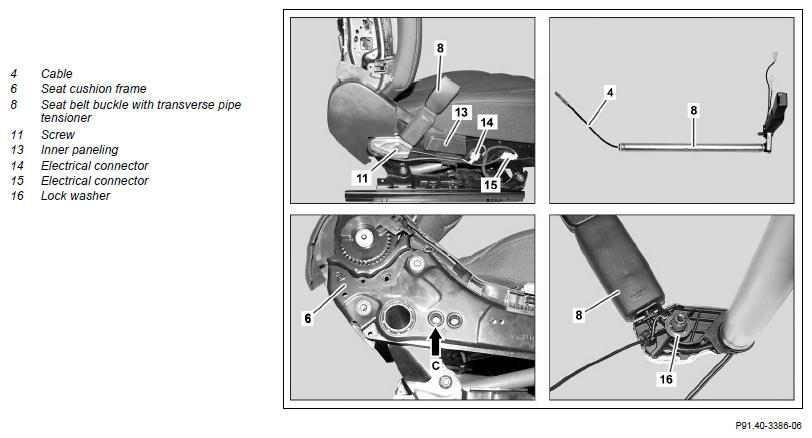

9	Remove bolt (11)	When reinstalling the seat belt buckle with transverse pipe tensioner (8), screw/bolt (11) and the threaded hole (arrow C) must have all locking varnish residue removed. Moisten screw/bolt (11) with Loctite 241 locking varnish. Thread locking adhesive, Loctite 241	*BR00.45-Z-1001-02A
		Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1001-01T
10	Unhook wiring harnesses of electrical connectors (14, 15) from inner cover (13)	Ensure that wiring harnesses are routed properly.
11	Unclip, release and disconnect electrical connectors (14, 15)	Ensure that electrical connectors (14, 15) are correctly seated in each bracket on the seat cushion frame (6).
12	Pull seat belt buckle with transverse pipe tensioner (8) out of transverse pipe of seat cushion frame (6)	The vehicle is equipped with a combined pyrotechnically seat belt buckle/belt anchor fitting tensioner. These form a structural unit, the transverse pipe tensioner, which may only be removed/installed or replaced as a complete unit. If the triggering mark (arrow B) on the wire cable (4) is not visible, the seat belt buckle with transverse pipe tensioner (8) must be replaced.
13	Dispose of seat belt buckle with transverse pipe tensioner (8) properly	When replacing the seat belt buckle with transverse pipe tensioner (8).
14	Install in the reverse order
15	Connect Star Diagnosis and check Supplemental Restraint System (SRS)	When replacing the seat belt buckle with transverse pipe tensioner (8).
			AD00.00-P-2000-04B

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 222
BA91.40-P-1001-01T	Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	Nm	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 222
BA91.40-P-1002-01T	Bolt for guide (belt buckle/belt anchor fitting tensioner)	Nm	24

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 222
BA91.40-P-1003-01T	Nut for guide (belt buckle/belt anchor fitting tensioner)	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-02A	Thread locking adhesive, Loctite 241	A 002 989 94 71
