Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990LF
Model 217, 222

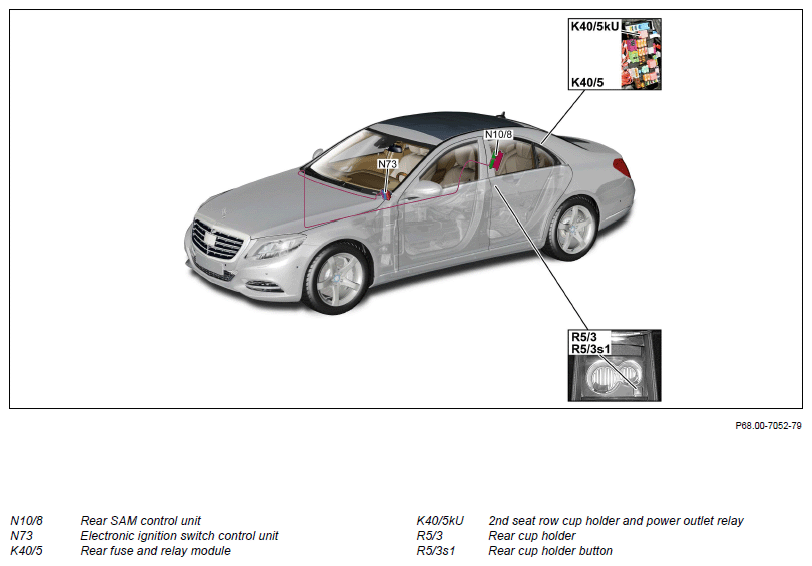

Temperature-controlled cup holder (model 222 With Code 224 (Design individual rear seat system)), shown on model 222.0

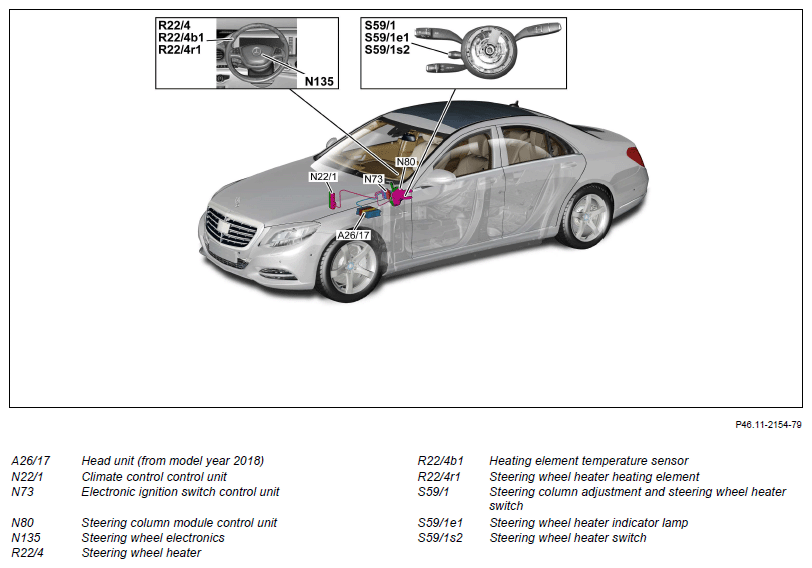

Steering wheel heater (LRH) (With Code 443 (Steering wheel heater)), shown on model 222.0

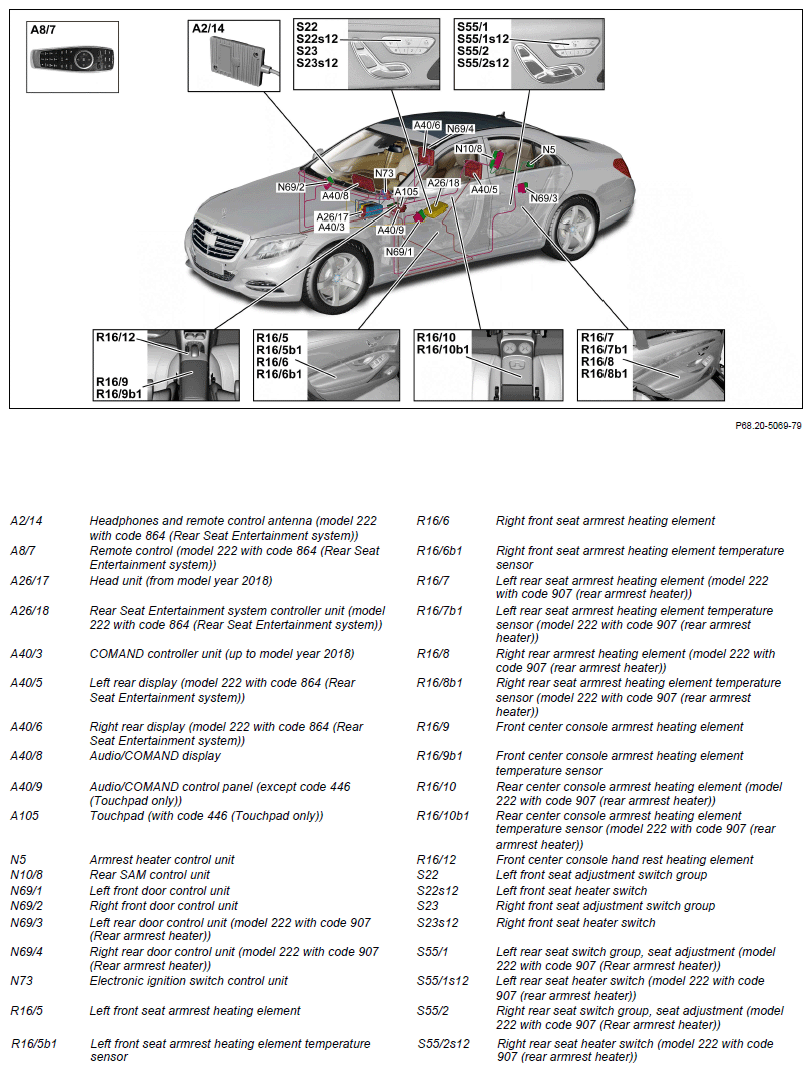

Armrest heater (With Code 906 (Front armrest heater), model 222 With Code 907 (Rear armrest heater)), shown on model 222.0

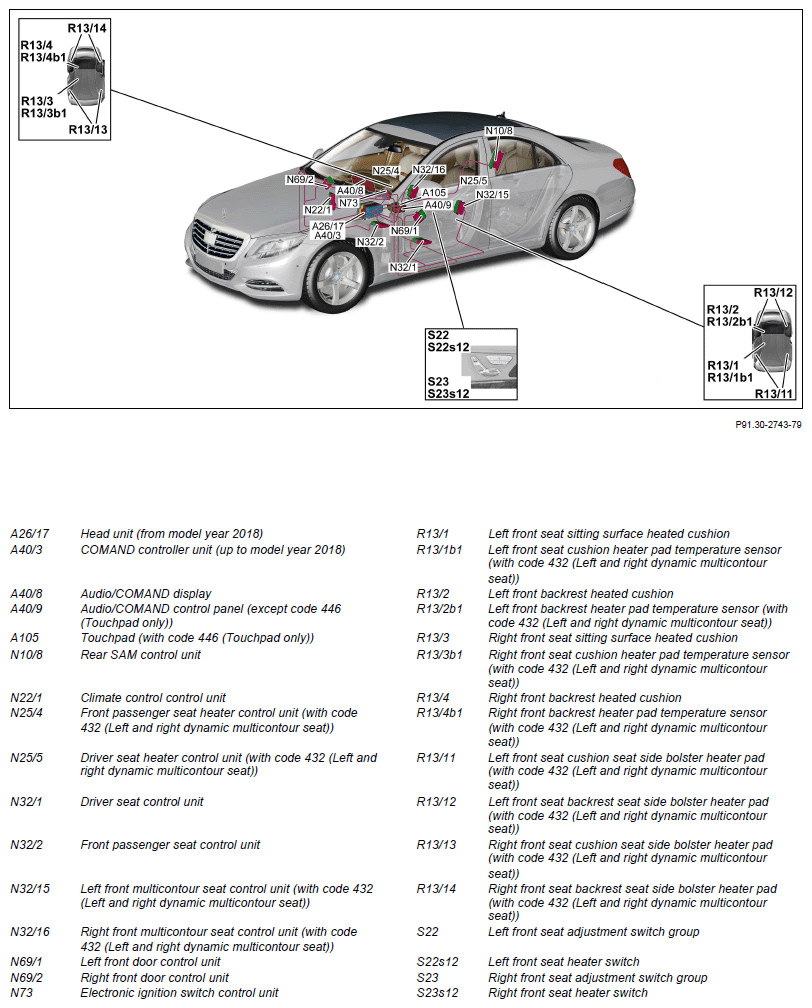

Front seat heater (With Code 873 (Seat heater for driver and front passenger) or code 401 (Seat climate control for driver and front passenger) or code 432 (Left and right dynamic multicontour seat), shown on model 222.0)

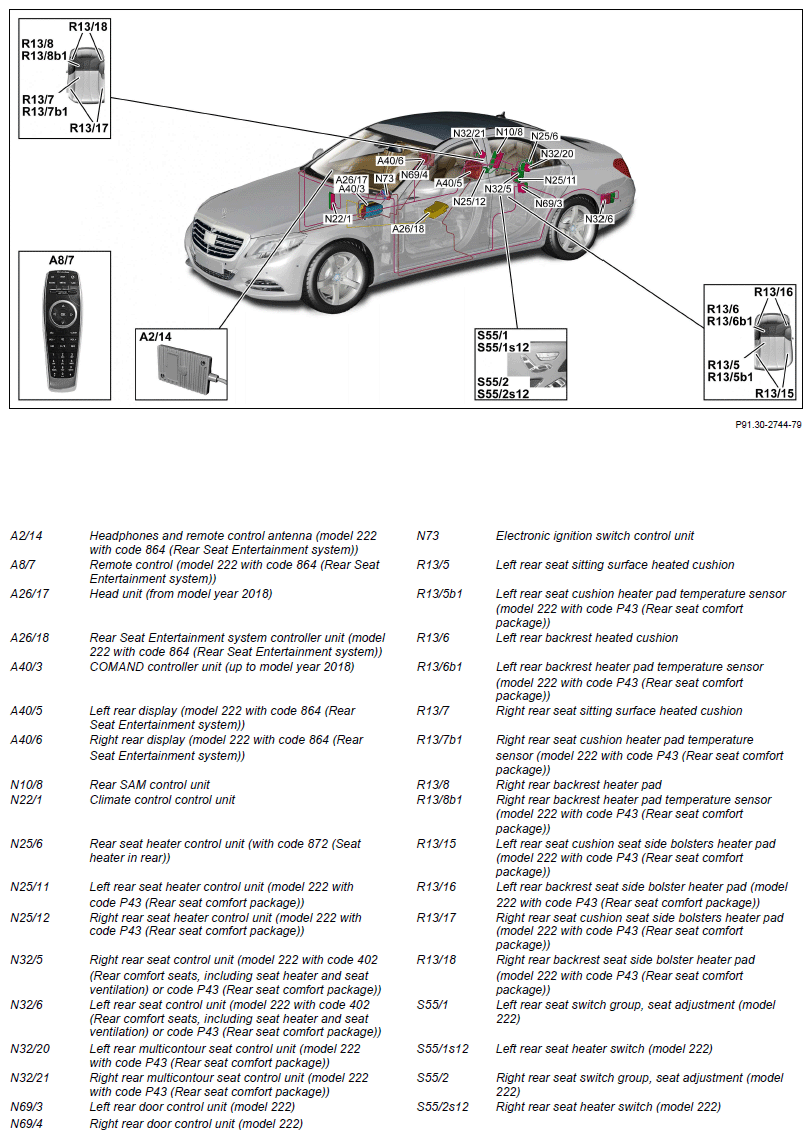

Rear seat heater (With Code 872 (Seat heater in the rear), model 222 With Code 402 (Rear comfort seats, including seat heater and seat ventilation), model 222 code P43 (Rear seat comfort package)), shown on model 222.0
In model 217, the following components are also installed, but they are not shown:
- Rear control unit (N22/6)
- Left rear seat heater switch (S51/3)
- Right rear seat heater switch (S51/4)

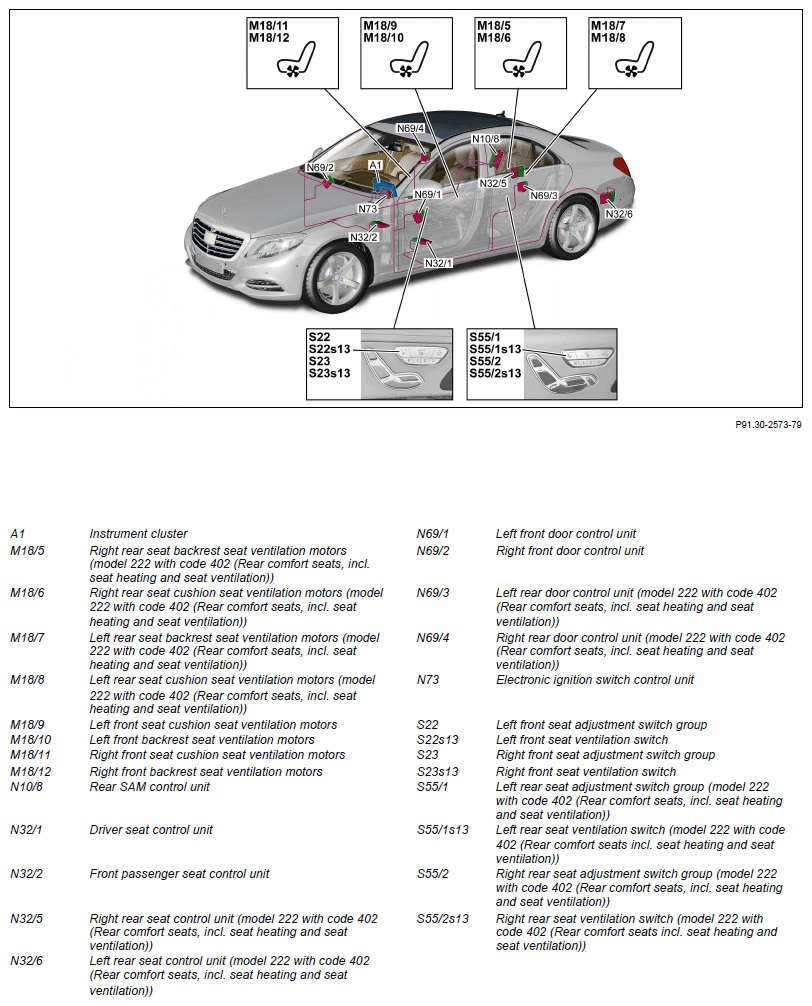

Electric seat ventilation (With Code 401 (Seat climate control for driver and front passenger), model 222 With Code 402 (Rear comfort seats, including seat heating and seat ventilation)), shown on model 222.0

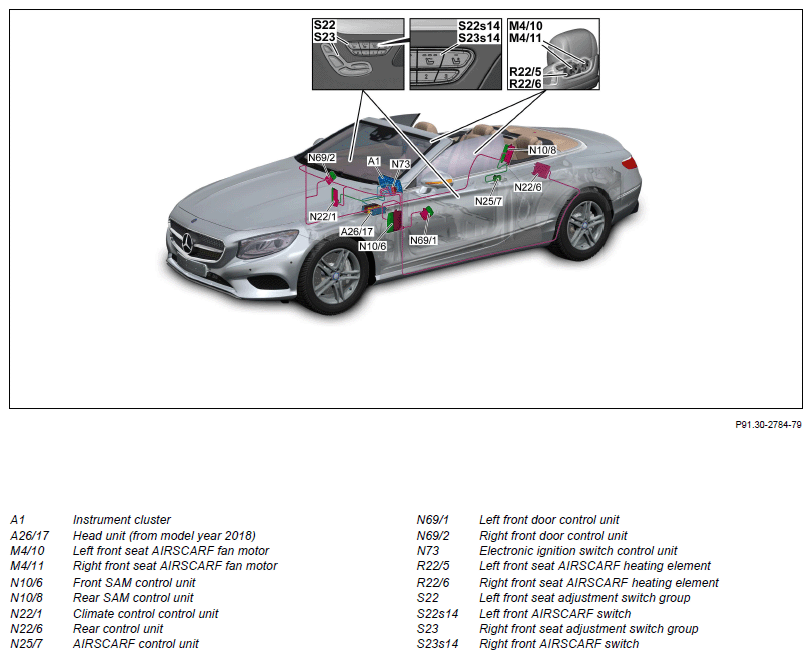

AIRSCARF (model 217.3 With Code 403 (AIRSCARF system))
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 | GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 | GF82.85-P-3140LFM | |
| Rear entertainment system controller unit, component description | Model 222 up to model year 2018 with code 864 (Rear compartment entertainment package) A26/18 | GF82.90-P-4021LF | |
| Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package) A26/18 | GF82.90-P-4021LFM | ||
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 | GF82.85-P-3136LF | |
| Component description for rear display left/right | Model 222 with code 864 (Rear compartment entertainment package) A40/5, A40/6 | GF82.90-P-4020LF | |
| Component description for Audio/COMAND display | Model 217, 222 up to model year 2018 A40/8 | GF54.30-P-6150LF | |
| Model 217, 222 as of model year 2018 A40/8 | GF54.30-P-6150LFM | ||
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 A40/9 | GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | ||
| Touchpad, component description | Model 217, 222 with code 446 (Touchpad only) Model 217, 222 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Armrest heater control unit, component description | Model 217, 222 with code 906 (Front armrest heater) Model 222 with code 907 (Rear armrest heater) N5 |
GF68.20-P-2000LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217 N22/6 | GF54.21-P-4134LF | |
| Seat heater control unit, component description | Model 217, 222 with code 432 (Left and right dynamic multicontour seat) Model 217, 222 with code 872 (Heated rear seats) Model 222 with code P43 (Rear seat comfort package) N25/4, N25/5, N25/11, N25/12, N25/6 |
GF91.30-P-5214LF | |
| Component description for AIRSCARF system control unit | Model 217.4 with code 403 (Airscarf system) N25/7 | GF91.30-P-2120LF | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/5 | GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/6 | GF91.29-P-5285LF | |
| Multicontour seat control unit (MCS), component description | Model 217, 222 with code 432 (Left and right dynamic multicontour seat) Except Code 406 (Rear multicontour seat) N32/15, N32/16 | GF91.25-P-5201LF | |
| Model 222 with code 406 (Rear multicontour seat) Except Code 432 (Left and right dynamic multicontour seat) N32/20, N32/21 | GF91.25-P-5201LFA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 | GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 up to model year 2018 N80 | GF54.21-P-6051LF | |
| Model 217, 222 as of model year 2018 N80 | GF54.21-P-6051LFM | ||
| Table of contents for function description of comfort heating systems | GF91.30-P-0999LF |
