Remove/Install Emergency Call System Antenna - AR82.95-P-0017LF
Model 217, 222
Shown on Model 222
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove rear bumper. | Model 217 | AR88.20-P-2200LC |
| Model 222 | AR88.20-P-2200LF | ||
| 3 | Remove holder for subwoofer. | Model 222 with code 811 (High-End sound system) When removing ventilation flap with emergency call system antenna, left (A2/54). |
|
| 4 | Remove multicontour seat air pump. | When removing ventilation flap with emergency call system antenna, left (A2/54). | |
| Model 217 with code 432 (Dynamic seats left and right) Model 217 with code P43 (Rear seat comfort package) Model 222.0/1/9 with code 432 (Dynamic seats left and right) Model 222.0/1/9 with code P43 (Rear seat comfort package) |
AR91.25-P-1430LF | ||
| 5 | Remove DC/DC converter. | Model 222.163 When removing ventilation flap with emergency call system antenna, right (A2/55). |
|
| AR54.10-P-1350LFH | |||
| 6 | Release and disconnect electrical connector o ventilation flap with emergency call system antenna, left (A2/54) or ventilation flap with emergency call system antenna, right (A2/55). | ||

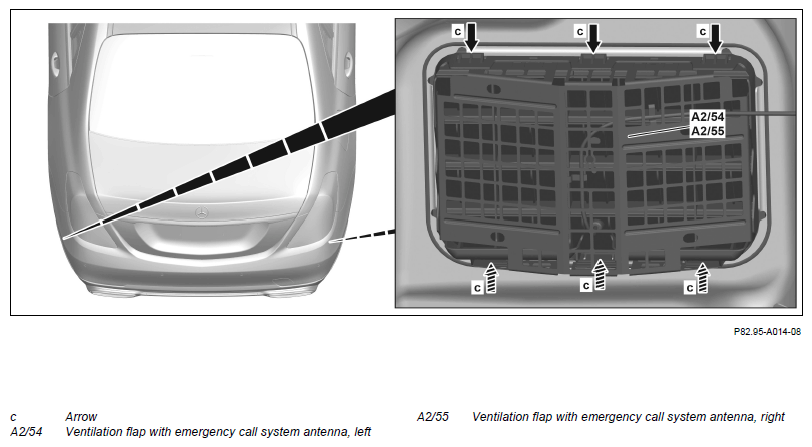

| 7 | Unclip ventilation flap with emergency call system antenna, left (A2/54) or ventilation flap with emergency call system antenna, right (A2/55) at arrows (c) and remove outwards. | Fig 1 | |
| 8 | Install in the reverse order. |
