Remove/Install Air/Pneumatic Pump For Multicontour Seat - AR91.25-P-1430LF
Model 217
with code 432 (Dynamic seats left and right)
Model 217
with code P43 (Rear seat comfort package)
Model 222.0/1/9
with code 432 (Dynamic seats left and right)
Model 222.0/1/9
with code P43 (Rear seat comfort package)
| Remove/install | |||
| 1 | Remove left cover from trunk | Model 217.4 with code 432 (Dynamic seats left and right) Model 217.4 with code P43 (Rear seat comfort package) |
AR68.30-P-4800LCA |
| Model 217.3 with code 432 (Dynamic seats left and right) Model 217.3 with code P43 (Rear seat comfort package) |
AR68.30-P-4600LC | ||
| Model 222.0/1/9 with code 432 (Dynamic seats left and right) Model 222.0/1/9 with code P43 (Rear seat comfort package) |
AR68.30-P-4600LF | ||
| 2 | Remove woofer | Model 222.0/1/9 with code 432 (Dynamic seats left and right) with code 811 (High-End sound system) Model 222.0/1/9 with code 811 (High-End sound system) with code P43 (Rear seat comfort package) |
|
| AR82.62-P-7839LF | |||
| 3 | Take off cover (1) | ||

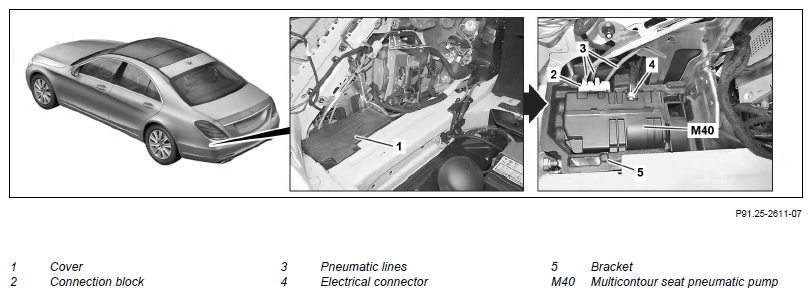

| 4 | Remove multicontour seat pneumatic pump (M40) out of bracket (5) until electrical plug (4) can be disconnected | ||
| 5 | Disconnect electrical plug (4) at multicontour seat pneumatic pump (M40) | ||
| 6 | Disconnect pneumatic lines (3) | Otherwise correct function of the air cushion o' the multicontour seat is no longer ensured. Otherwise the pneumatic lines (3) may be damaged. |
|
| 7 | Remove multicontour seat pneumatic pump (M40) from trunk | ||
| 8 | Remove terminal block (2) | When replacing multicontour seat pneumatic pump (M40). | |
| 9 | Install in the reverse order |
