Remove/Install Front Seat Head Restraint Guide - AR91.16-P-0050LF

Model 222

except code 439 (Intelligent/folding front comfort head restraint)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove
1	Remove left or right head restraint at front seat		AR91.16-P-0040LF

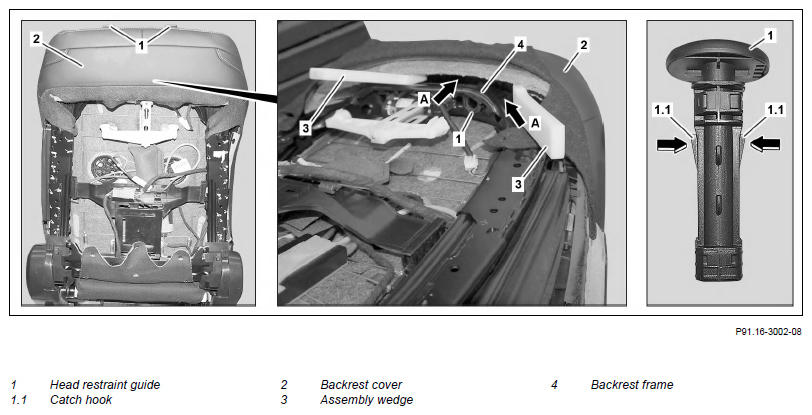

2	Unhook shackle of the backrest cover (2) at backrest frame (4)
3	Detach backrest cover (2) with padding from backrest frame (4)
4	Expose head restraint guides (1)	To do so, create a gap using assembly wedge (3) between backrest cover (2) with padding and backrest frame (4). Do not overstretch backrest cover (2) with padding here.
		Mounting wedge	Fig 1
5	Using a suitable screwdriver, insert this between backrest cover (2) and backrest frame (4) (arrows A) and release catch hook (1.1)	Push catch hook (1.1) in direction of arrow to release.
6	Remove head restraint guides (1) upwards	Head restraint guides (1) must be replaced.
	Install
7	Insert head restraint guides (1) from above the backrest frame (4) and engage
8	Position backrest cover (2) with padding at backrest frame (4)
9	Hook in tabs of backrest cover (2) at backrest frame (4)
10	Install left or right head restraint at front seat		AR91.16-P-0040LF

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
