Remove/Install Front Seat Backrest Cover - AR91.18-P-1820LF

Model 217

Model 222

Courtesy of MERCEDES-BENZ USA

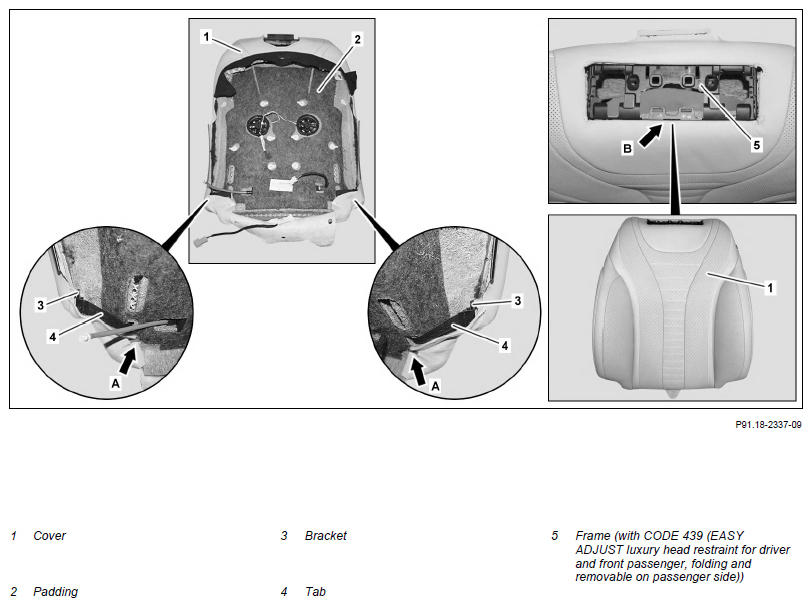

Shown on Model 222 with CODE 401 (Seat climate control for driver and front passenger) and CODE 439 (EASY ADJUST luxury head restraint for driver and front passenger, folding and removable at passenger side)

Courtesy of MERCEDES-BENZ USA

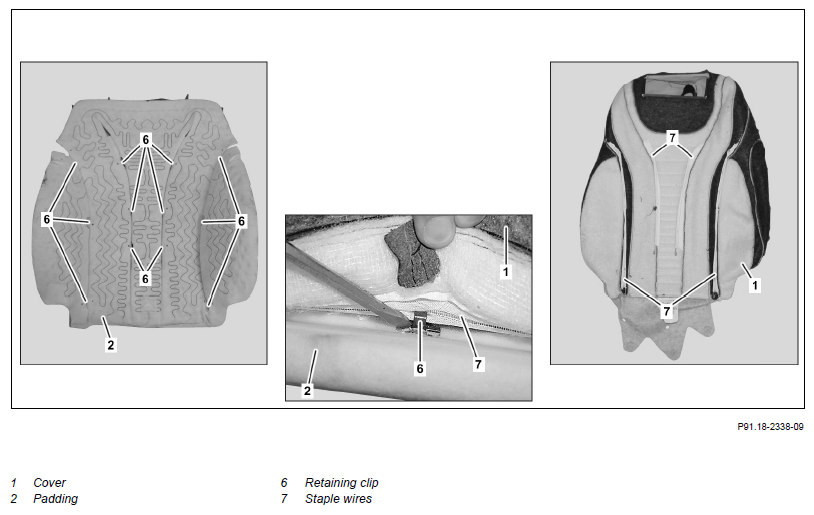

Shown on Model 222 with CODE 873 (Seat heater for driver and front passenger)

	Remove/install
1	Remove backrest padding on driver or front passenger seat		AR91.10-P-1095LF
2	Unhook tabs (4) from brackets (3) of cover (1)
3	Unhook cover (1) from brackets (arrows A)
4	Unclip frame (5) beginning in marked area (arrow B) and remove	MODEL 222 with CODE 439 (EASY ADJUST luxury head restraints for driver and front passenger, folding and removable on front passenger side)
5	Slip cover (1) over padding (2)
6	Unhook staple wires (7) of cover (1) from retaining clips (6) at seat surface side of padding (2) using a suitable screwdriver	Carefully unhook upholstery wires (7). Otherwise the retaining clips (6) may be damaged. In the event of damaged retaining clips (6): ↓ Replace padding (2).
7	Remove cover (1) from padding (2)	:  Ensure that cover (1) is correctly seated on padding (2).
8	Pull staple wires (7) out of cover (1)	When replacing cover (1). :  Insert staple wires (7) in new cover (1).
9	Install in the reverse order
