Remove/Install Cushion Airbag - AR91.60-P-0698LF
Model 222.0/1/9
with code 223 (Electric backrest adjustment and head restraints)
with code 453 (Rear reclining seat)
with code P07 (Chauffeur package)
| Risk of injury during testing and repair operations related to pyrotechnically components | Do not expose pyrotechnically component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnically components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect ground line to battery | AR54.10-P-0003LF | |
| 3 | Remove cover with padding from left or right seat cushion in rear | AR91.18-P-1850LFA | |

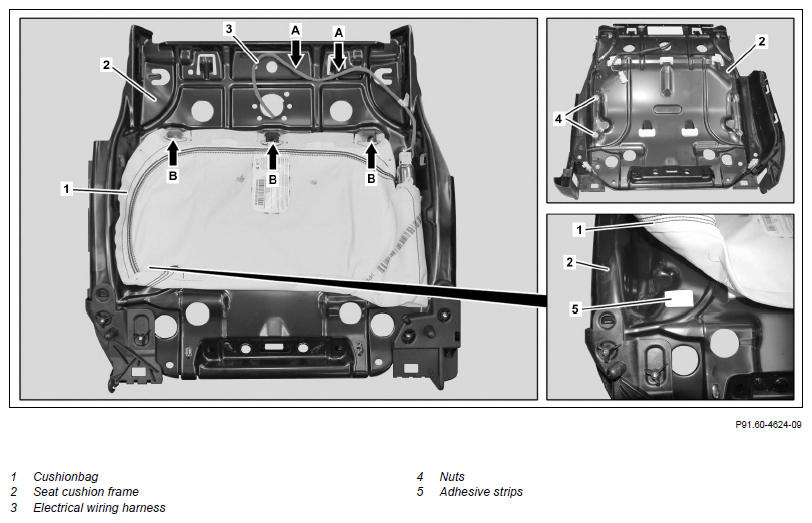

| 4 | Unclip retaining clip (arrows A) from electrical wiring harness (3) on seat cushion frame (2) | ||
| 5 | Create access to electrical wiring harness (3) | ||
| 6 | Remove nuts (4) | ||
| 7 | Remove cushion airbag (1) from adhesive strip (5) | ||
| 8 | Unhook cushion airbag (1) from hook (arrows B) and remove | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check and erase vehicle fault memory using diagnostic system | When replacing cushion airbag (1). | |
| AD00.00-P-2000-04B |
