Remove/Install Rear Seat Cushion Cover - AR91.18-P-1850LFA

Model 222.0/1/9

with code 223 (Electric backrest adjustment and head restraints)

Model 222.0/1/9

with code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

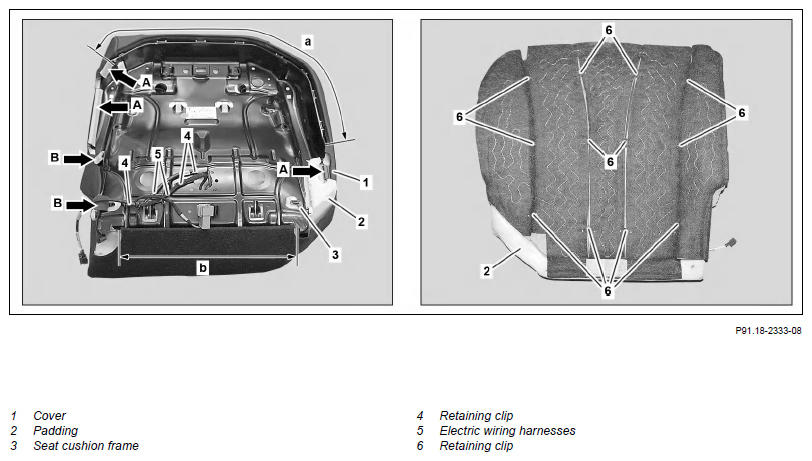

Shown on rear seat cushion with CODE 903 (Seat heater Plus for rear outer seats) and without leg rest

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

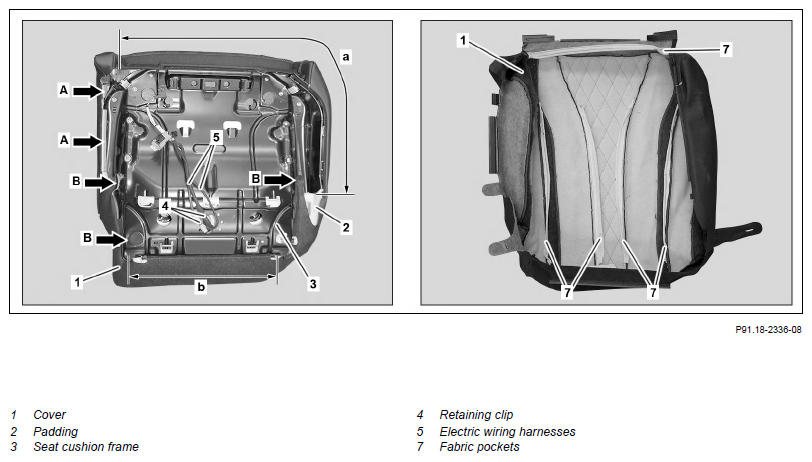

Shown on rear seat cushion with CODE 903 (Seat heater Plus for rear outer seats) and leg rest

	Remove/install
1	Remove left or right rear seat cushion		AR91.12-P-1020LFA
2	Unclip retaining clip (4) from seat cushion frame (3)
3	Unhook edge stripping (arrows A) at seat cushion frame (3)
4	Unhook fabric tabs (arrows B) at seat cushion frame (3)
5	Guide out fabric tabs (arrows B) under seat cushion frame (3)	Pay attention to installation position.
6	Unhook cover (1) in area (a) at seat cushion frame (3)	Extraction hook	Fig 1
7	Unhook cover (1) in area (b) at seat cushion frame (3)	Extraction hook	Fig 1
8	Slip cover (1) over padding (2)
9	Unhook staple wires (7) in fabric pockets of cover (1) from retaining clip (6) on seat surface side of padding (2) using a suitable screwdriver	Do not damage retaining clip (6). Otherwise the padding (2) must be replaced.
10	Remove cover (1) from upholstery (2)	Guide electrical wiring harnesses (5) through seat cushion frame (3). The number of electric wiring harnesses (5) can vary depending on the equipment installed. : Ensure that cover (1) is seated correctly on padding (2).
11	Pull staple wires in fabric pockets (7) out of cover (1)	When replacing cover (1). : Insert staple wires in fabric pockets (7) into the new cover (1).
12	Install in the reverse order

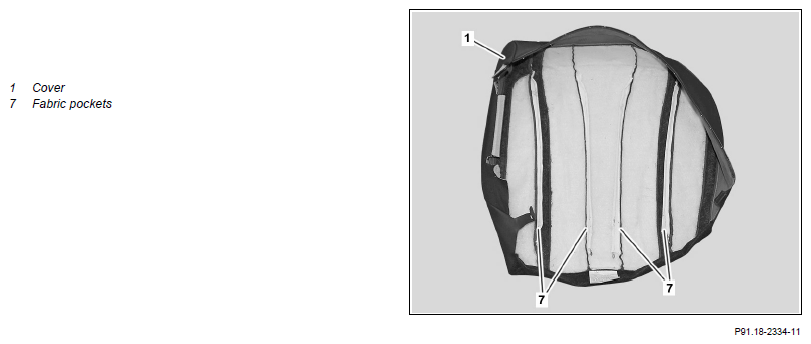

Fig 1: Identifying Extraction Hook (140 589 02 33 00)
