Supplemental Restraint System Function - GF91.60-P-0003LF
Model 217, 222

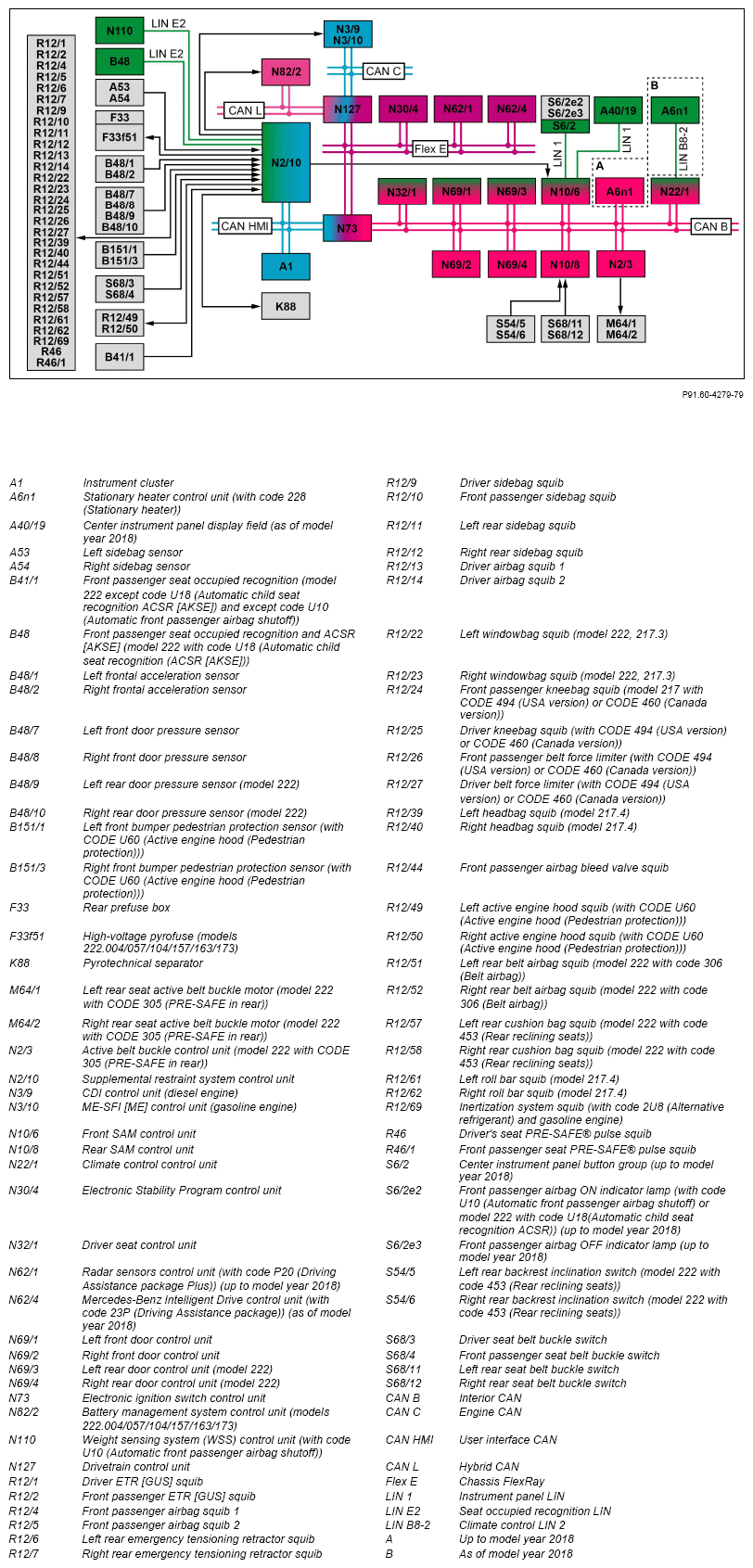

Block diagram
Model 217, 222
as of model year 2018
Front passenger airbag indicator lamp
On vehicles as of model year 2018, the activated or deactivated front passenger airbag is indicated via corresponding symbols in the center instrument panel display field.
Function requirements, general
- The Supplemental Restraint System must be programmed to the vehicle (left or right-hand drive vehicle, equipment programming, and configuration parameters).
- Circuit 15R ON
The electronic ignition lock control unit transmits the status of circuit 15 to the Supplemental Restraint System control unit via the user interface CAN.
After switching off circuit 15R, parts of the Supplemental Restraint System remain active for a certain run-on time.
Power reserve: The Supplemental Restraint System control unit ensures a power reserve for at least t = 300 ms after the voltage supply has been interrupted.
Supplemental restraint system, general information
The supplemental restraint system is intended for occupant protection and with CODE U60 (Active engine hood (Pedestrian protection)) for pedestrian protection.
In certain situations, extending the seat belt is blocked irrespective of the status of the Supplemental Restraint System.
The following functions are described in separate documents:
- Belt extender, function (model 217)
- Pedestrian protection, function (With Code U60 (Active engine hood (pedestrian protection)))
- Passenger-side seat occupied recognition, function (model 222 Except Code U10 (Automatic front passenger airbag shutoff))
- Passenger-side seat occupied recognition, function (With Code U10 (Automatic front passenger airbag shutoff))
- Supplemental restraint system deployment function
| Belt extender, function | Model 217 | GF91.45-P-0001LF | |
| Pedestrian protection function | Model 217, 222 with code U60 (Active Bonnet (Pedestrian protection)) |
GF91.60-P-1005LF | |
| Passenger-side seat occupied recognition function | Model 222 Except Code U10 (Automatic seat occupancy recognition and child seat recognition) |
GF91.60-P-1100LF | |
| Model 217, 222 with code U10 (Automatic seat occupancy recognition and child seat recognition) |
GF91.60-P-1100LFU | ||
| Actuate supplemental restraint system, function | GF91.60-P-2012LF | ||
| Overview of system components for supplemental restraint system | GF91.60-P-9996LF |
