Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996LF

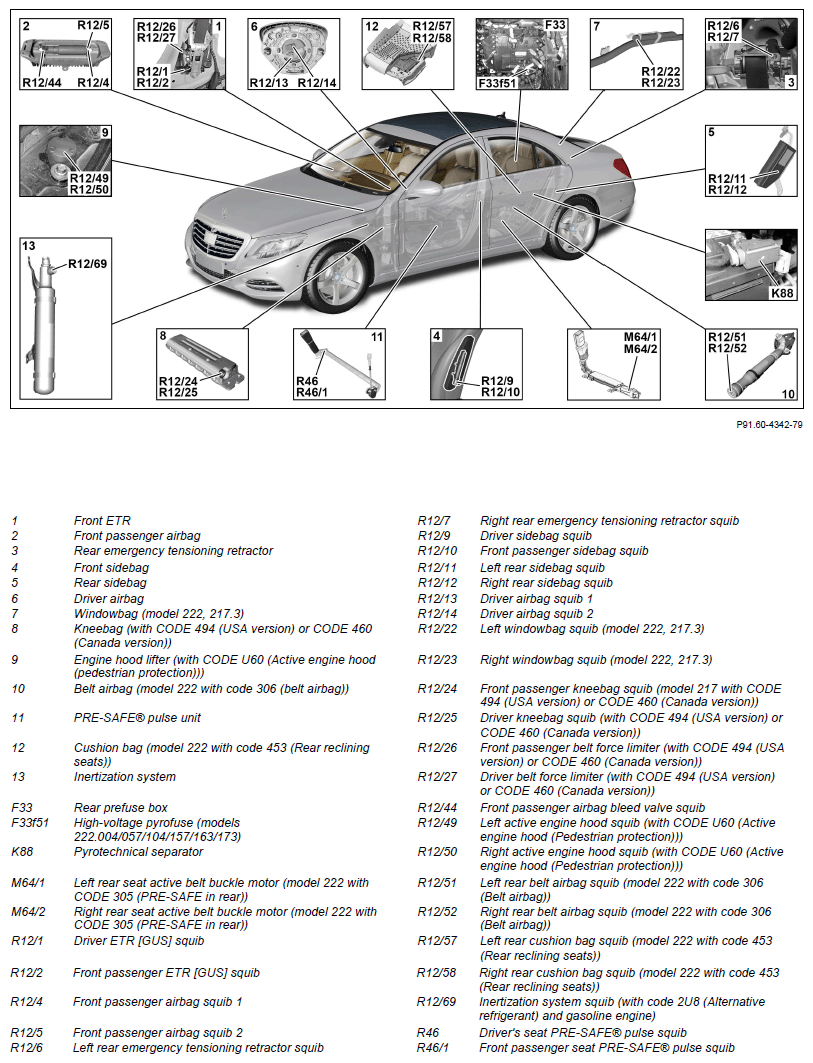

Model 217, 222
Model 217 and 222, shown is model 222.0 up to model year 2018

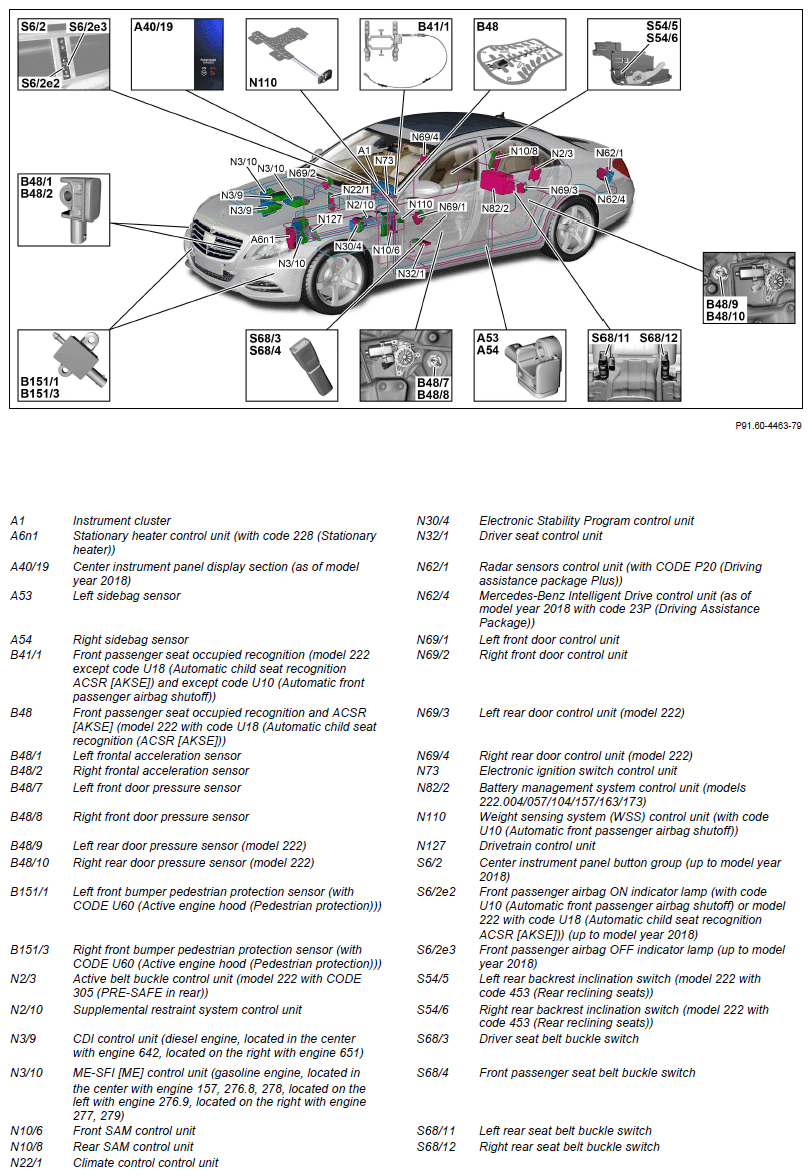

Model 217, 222 as of model year 2018
Front passenger airbag indicator lamp
In vehicles from model year 2018, an appropriate symbol is displayed in the center instrument panel display section to indicate whether the front passenger airbag is switched on or off.
Model 217 and 222, shown is model 222.0 up to model year 2018
On model 217.4, the following components are also installed, but they are not shown:
- Left headbag squib (R12/39)
- Right headbag squib (R12/40)
- Left roll bar squib (R12/61)
- Right roll bar squib (R12/62)

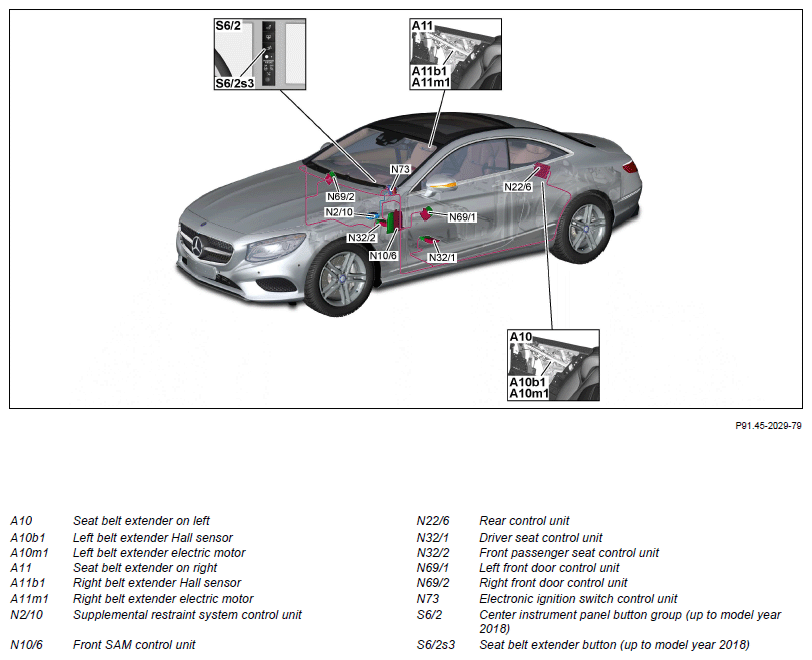

Belt extender (model 217), shown on model 217.3

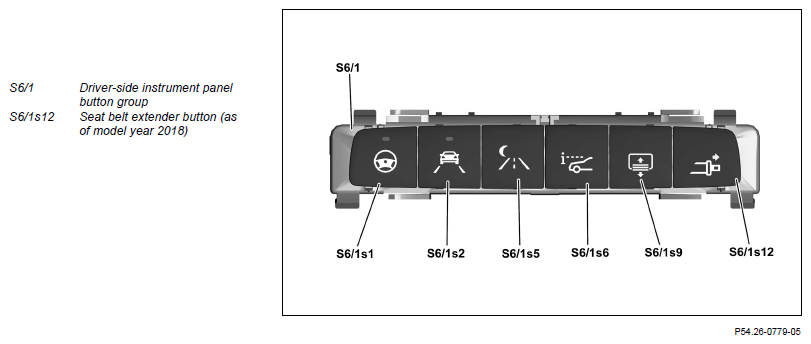

As of model year 2018 vehicle except engine 177, 279, shown on model 217
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 | GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Stationary heater control unit, component description | Model 217.3, 222 with code 228 (Auxiliary heater) A6n1 | GF83.70-P-4066LF | |
| Active belt buckle control unit, component description | Model 222 with code 305 (Rear PRE-SAFE) N2/3 | GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 | GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 | GF07.16-P-6000OLA | ||
| Model 222 with engine 656.9 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 157.9, 278.9 N3/10 | GF07.61-P-6000MML | |
| Model 222 with engine 276.8 N3/10 | GF07.61-P-6000MMT | ||
| Model 222 with engine 276.9 N3/10 | GF07.61-P-6000MMK | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 217 with engine 176.9, 177.9 Model 222 with engine 176.9, 177.9 N3/10 |
GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 N3/10 | GF07.61-P-6000MRT | ||
| Model 222 with engine 264.9 N3/10 | GF07.61-P-6000MRK | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217 N22/6 | GF54.21-P-4134LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 | GF42.45-P-5119LF | |
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 | GF42.45-P-5119LFH | ||
| Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119FA | ||
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Component description for radar sensors control unit | Model 217, 222 up to model year 2018 with code P20 (Driving Assistance package Plus) N62/1 | GF30.30-P-3301LF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 | GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for battery management system control unit | Model 222.004/104 with engine 651.9 Model 222.057/157 with engine 276 Model 222.163 with engine 276 Model 222.173 with engine 276 N82/2 |
GF54.10-P-3012LFH | |
| Component description for Weight Sensing System (WSS) control unit | Model 217, 222 with code U10 (Automatic seat occupancy recognition and child seat recognition) N110 | GF91.60-P-4069LFU | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163/173 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 | GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 N127 | GF54.21-P-2141OLA | ||
| Model 222 with engine 656.9 N127 | GF54.21-P-2141OIA | ||
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996LF |
