Adjust Front Axle Toe - AR40.20-P-0264LF

Model 217, 222

MODIFICATION NOTES

16.02.2017 Total front axle toe at vehicle level Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Highest protection), model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Highest protection) BE40.20-P-1001-07X
16.02.2017 Total front axle toe at vehicle level Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)), model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC)) BE40.20-P-1001-07X
16.02.2017 Total front axle toe at vehicle level Model 222.0 (except 222.077) with code M005 (4MATIC), model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) BE40.20-P-1001-07X
16.02.2017 Total front axle toe at vehicle level Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Highest protection) BE40.20-P-1001-07X
16.02.2017 Total front axle toe at vehicle level Model 222.178 with code 494 (USA version)
except code 487 (Active Body Control (ABC)		 BE40.20-P-1001-07X
16.02.2017 Total front axle toe at vehicle level Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC)) BE40.20-P-1001-07X
G15367334Courtesy of MERCEDES-BENZ USA
G15367335Courtesy of MERCEDES-BENZ USA
G15367336Courtesy of MERCEDES-BENZ USA
  Adjust
1 Deactivate easy entry and exit feature for steering wheel through COMAND Online in Vehicle settings menu NOTES Depending on the version, the steering wheel and possibly also the driver's seat move to a different position when, for example, the driver door is opened or closed.
Otherwise the driver's seat and the steering wheel could be damaged when the brake pedal jack and holding device (055) are installed.
IMPORTANT Details of the procedure can be found in the vehicle owner's manual.
2 Move front wheels to straight ahead position

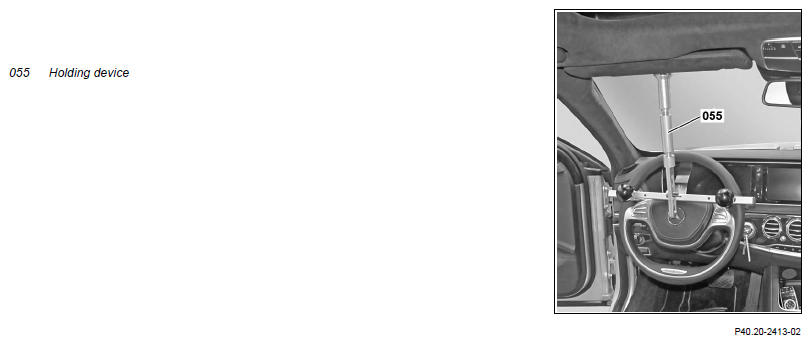

3 Insert holding device (055) in front of sun visor and fix steering wheel in center position NOTES Protect the emblem in the steering wheel against damage.
Otherwise the holding device (055) may make an indent on the emblem.
SPECIAL TOOL Retainer device		 Fig 1
INSPECT Check

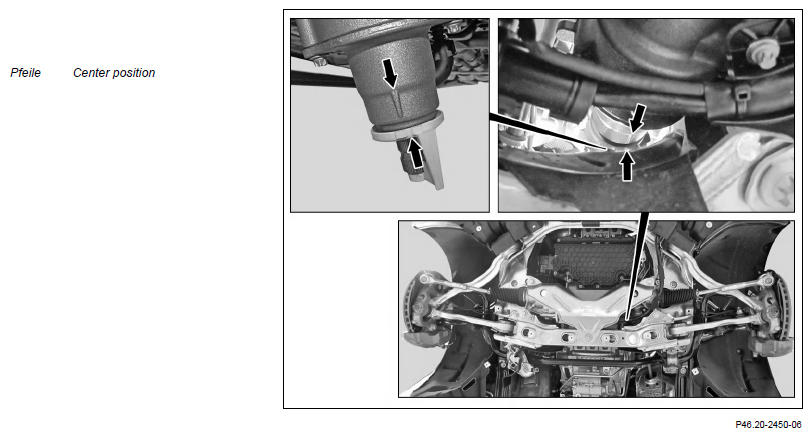

4 Check center positions (arrows) of steering gear and steering wheel If the steering gear is not in the center position (arrows).
↓
Move steering wheel by one tooth only.		 AR46.20-P-0600-01RK
AR46.10-P-0100LF

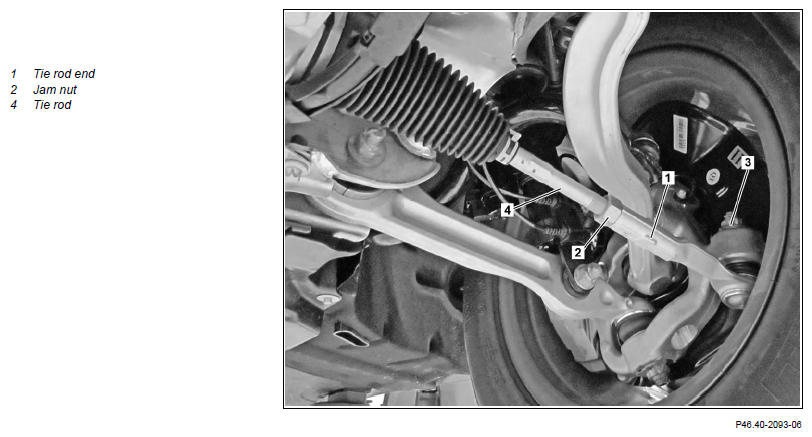

5 Slacken counternuts (2) on tie rod ends (1) It is essential to counterhold the tie rod ends (1).
Otherwise the tie rod ends (1) could be damaged.
6 Adjust toe by rotating tie rods (4) Model 222 Total front axle toe at vehicle level *BE40.20-P-1001-07X
    Model 217 Total front axle toe at vehicle level *BE40.20-P-1001-07EA
7 Tighten lock nuts (2). NOTES It is essential to counterhold the tie rod ends (1).
Otherwise the tie rod ends (1) could be damaged.
    TORQUE SPECIFICATION Jam nut, tie rod to inner tie rod *BA46.40-P-1002-01M
8 Remove holding device (055) SPECIAL TOOL Retainer device Fig 1
9 Check boots for angular movement and straighten if necessary
10 Activate easy entry/exit feature for the steering wheel
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-07EA Total front axle toe at vehicle level -4.73° ∠° 0° 14' (±10') -
-3.97° ∠° - 0° 14' (±10')
-2.89° ∠° - -
-1.39° ∠° - -
0.20° ∠° - -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1001-07EA Total front axle toe at vehicle level -4.73° ∠° - -
-3.97° ∠° - -
-2.89° ∠° - -
-1.39° ∠° - 0° 14' (±10')
0.20° ∠° 0° 14' (±10') -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1001-07EA Total front axle toe at vehicle level -4.73° ∠° - -
-3.97° ∠° - -
-2.89° ∠° - 0° 2' (±10')
-1.39° ∠° - -
0.20° ∠° 0° 14' (±10') -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1001-07EA Total front axle toe at vehicle level -4.73° ∠° -
-3.97° ∠° -
-2.89° ∠° -
-1.39° ∠° 0° 14' (±10')
0.20° ∠° -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)) Model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC))
BE40.20-P-1001-07X Total front axle toe at vehicle level -4.43° ∠° 0° 14' (±10') -
-3.35° ∠° - -
-3.21° ∠° 0° 14' (±10') -
-2.15° ∠° - -
-1.98° ∠° 0° 14' (±10') -
-1.85° ∠° - -
-0.94° ∠° - -
-0.64° ∠° - -
-0.26° ∠° - 0° 14' (±10')
+0.56° ∠° - -
+0.95° ∠° - 0° 14' (±10')
+1.45° ∠° - -
+2.16° ∠° - 0° 14' (±10')
+2.68° ∠° - -
+3.91° ∠° - -
+5.14° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 222.0 (except 222.077) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Top protection)
BE40.20-P-1001-07X Total front axle toe at vehicle level -4.43° ∠° - -
-3.35° ∠° - -
-3.21° ∠° - -
-2.15° ∠° - -
-1.98° ∠° - -
-1.85° ∠° 0° 14' (±10') -
-0.94° ∠° - -
-0.64° ∠° 0° 14' (±10') -
-0.26° ∠° - -
+0.56° ∠° 0° 14' (±10') -
+0.95° ∠° - -
+1.45° ∠° - +0° 9' (±10')
+2.16° ∠° - -
+2.68° ∠° - +0° 9' (±10')
+3.91° ∠° - +0° 9' (±10')
+5.14° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 222.9 with code Z19 (Pullman government sedan) Model 222.9 with code Z31 (Pullman Guard government sedan)
BE40.20-P-1001-07X Total front axle toe at vehicle level -4.43° ∠° - -
-3.35° ∠° - -
-3.21° ∠° - -
-2.15° ∠° - -
-1.98° ∠° - -
-1.85° ∠° - -
-0.94° ∠° - -
-0.64° ∠° - -
-0.26° ∠° - -
+0.56° ∠° - -
+0.95° ∠° - -
+1.45° ∠° +0° 9' (±10') -
+2.16° ∠° - -
+2.68° ∠° +0° 9' (±10') +0° 9' (±10')
+3.91° ∠° +0° 9' (±10') +0° 9' (±10')
+5.14° ∠° - +0° 9' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 222.178 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 222.178 with code 494 (US version) except code 487 (Active Body Control (ABC))
BE40.20-P-1001-07X Total front axle toe at vehicle level -4.43° ∠° - -
-3.35° ∠° +0° -6' (±10') -
-3.21° ∠° - -
-2.15° ∠° +0° 2' (±10') -
-1.98° ∠° - -
-1.85° ∠° - +0° 4' (±10')
-0.94° ∠° +0° 11' (±10') -
-0.64° ∠° - +0° 14' (±10')
-0.26° ∠° - -
+0.56° ∠° - +0° 24' (±10')
+0.95° ∠° - -
+1.45° ∠° - -
+2.16° ∠° - -
+2.68° ∠° - -
+3.91° ∠° - -
+5.14° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 222.077/177/178/17 9/187/188 with code 487 (Active Body Control (ABC))
BE40.20-P-1001-07X Total front axle toe at vehicle level -4.43° ∠° -
-3.35° ∠° -
-3.21° ∠° -
-2.15° ∠° -
-1.98° ∠° -
-1.85° ∠° -
-0.94° ∠° -
-0.64° ∠° -
-0.26° ∠° +0° 14' (±10')
+0.56° ∠° -
+0.95° ∠° +0° 14' (±10')
+ 1.45° ∠° -
+2.16° ∠° +0° 14' (±10')
+2.68° ∠° -
+3.91° ∠° -
+5.14° ∠° -
TIE ROD

Number Designation Model 217 Model 222 except code Z07 (Top protection) except code Z19 (Pullman government sedan) except code Z31 (Pullman Guard government sedan)
BA46.40-P-1002-01M Jam nut, tie rod to inner tie rod Nm 60 60
TIE ROD

Number Designation Model 222 with code Z07 (Top protection) Model 222 with code Z19 (Pullman government sedan) Model 222 with code Z31 (Pullman Guard government sedan)
BA46.40-P-1002-01M Jam nut, tie rod to inner tie rod Nm 60
Fig 1: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
