Remove/Install Hydraulic Fluid Reservoir (ABC) - AR32.50-P-0022LF
Model 217, 222
With Code 487 (Active Body Control (ABC))

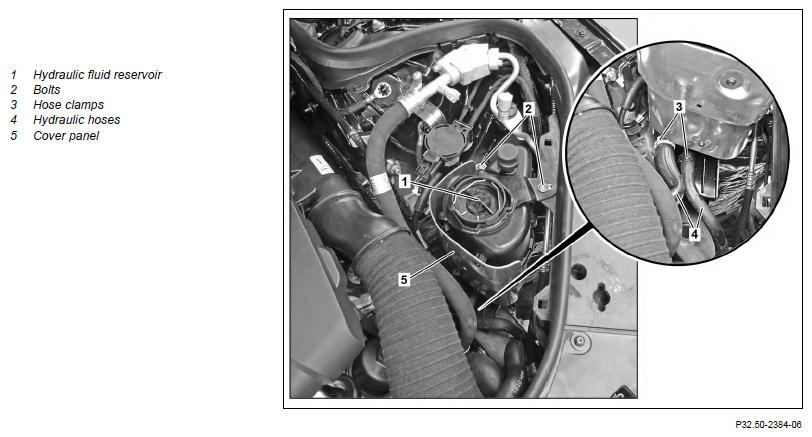

Shown on model 222
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Topical note | Notes on fitting hydraulic lines and hoses | AH32.50-P-0001-02A | |
| Notes on Active Body Control suspension | AH32.50-P-0001-01N | ||
| Remove/install | |||
| 1 | Remove left engine compartment cover over the hydraulic fluid reservoir (1) | ||
| 2 | Remove the left engine intake air duct | ||
| 3 | Drain hydraulic fluid reservoir (1) using hand pump | Fig 1 | |
| 4 | Remove bolts (2) and lift up hydraulic fluid reservoir (1) | ||
| 5 | Open clamps (3) and detach hydraulic hoses (4) | Fig 2 | |
| 6 | Seal hydraulic hoses (4) with stop plugs | Fig 3 | |
| 7 | Remove hydraulic fluid reservoir (1) | ||
| 8 | Remove cover panel (5) | When replacing hydraulic fluid reservoir (1) | |
| 9 | Install in the reverse order | ||
| 10 | Fill and bleed ABC system | AR32.50-P-0021SX |
