Remove/Install Rear Axle Track/Tie Rod - AR35.20-P-0109LF

Model 217

Model 222

Shown on Model 222

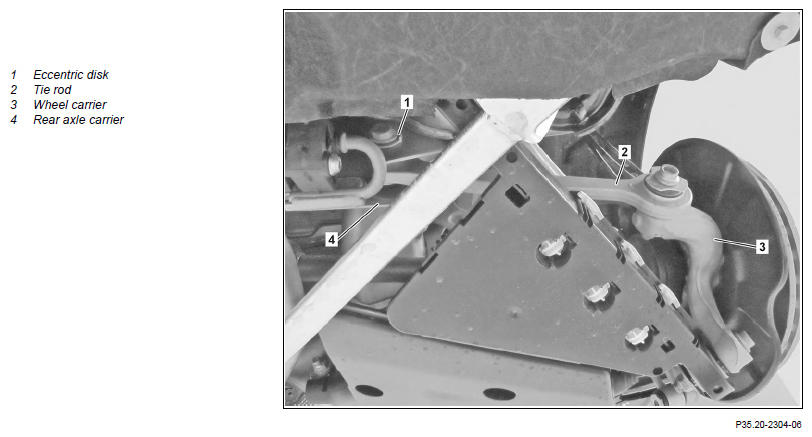

Fig 1: Rear Axle Track/Tie Rod Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Detach corresponding complete wheel		AR40.10-P-1102A
2	Mark installation position of eccentric disk (1)	The toe-in is set at the factory using the eccentric disk (1).
3	Detach level sensor from tie rod	Model 217.4	AR82.10-P-0005LF
4	Remove tie rod (2) from wheel carrier (3) and rear axle carrier (4)	Bolt, tie rod to wheel carrier	*BA35.20-P-1002-04L
		Nut, tie rod to rear axle carrier	*BA35.20-P-1001-04L
5	Install in the reverse order
6	Perform wheel alignment check		AR40.20-P-0200LF

TIE ROD

Number	Designation		Model 217	Model 222
BA35.20-P-1001-04L	Nut, tie rod to rear axle carrier	Nm	80	80

TIE ROD

Number	Designation			Model 217	Model 222
BA35.20-P-1002-04L	Bolt, tie rod to wheel carrier	Stage 1	Nm	50	50
		Stage 2	∠°	90	90
