Remove/Install Front Axle Valve Body - AR32.50-P-0001LF

Model 217

With Code 487 (Active Body Control (ABC))

Model 222

With Code 487 (Active Body Control (ABC))

Shown on MODEL 222 With Code 487

(Active Body Control (ABC))

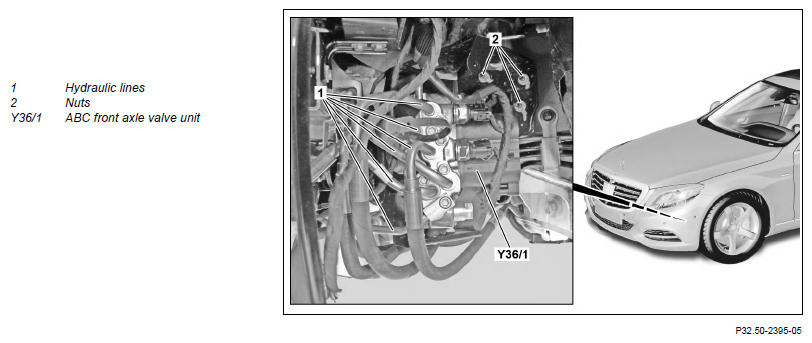

Fig 1: Front Axle Valve Body Components Location - Model 222 (Shown With Code 487)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
Notice	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
	Remove/install
1	Release pressure in ABC system using diagnostic system		AR32.50-P-0001-01LF
			AD00.00-P-2000-04B
2	Detach left front wheel-and-tire assembly		AR40.10-P-1102A
3	Remove left front fender liner		AR88.10-P-1300LF
4	Detach all electrical connections (5 pieces) from front axle ABC valve unit (Y36/1)
5	Clean area surrounding hydraulic line connections on front axle ABC valve unit (Y36/1)	Use clean, lint-free rags and cleaner without any mineral oil only.
6	Mark hydraulic lines (1) relative to connections on front axle ABC valve unit (Y36/1) and detach	Make sure that dirt does not enter into the opened hydraulic lines (1) and the front axle ABC valve unit (Y36/1). The ABC system can otherwise fail.
		Bolt, lines to front valve unit Check sealing rings for damage: ↓ Install new seals. Check support rings for damage: ↓ Replace hydraulic line (1).	*BA32.50-P-1003-03B
7	Seal hydraulic lines (1) and openings on front axle ABC valve unit (Y36/1) using stop plugs	Record plug	Fig 2
8	Unscrew nuts (2) and detach front axle ABC valve unit (Y36/1) with bracket from longitudinal member	Nut, front valve unit bracket to longitudinal member	*BA32.50-P-1001-03B
9	Transfer marking on old front axle ABC valve unit (Y36/1) to new front axle ABC valve unit (Y36/1)	When replacing front axle ABC valve unit (Y36/1)
10	Detach all brackets from the front axle ABC valve unit (Y36/1)	When replacing front axle ABC valve unit (Y36/1) Bolt, bracket to front valve unit	*BA32.50-P-1002-03B
11	Install in the reverse order
12	Replace stop plugs in removed front axle ABC valve unit (Y36/1) with plugs	When replacing front axle ABC valve unit (Y36/1) Caps are supplied with new part.
13	Fill and bleed ABC system		AR32.50-P-0021SX

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
