Remove/Install Torque Strut At Front Axle - AR33.15-P-0160LF
Model 217
Model 222
MODIFICATION NOTES
| 07.03.2017 | nut, tie rod to steering knuckle | Model 217 | BA46.40-P-1001-01M |
| 07.03.2017 | nut, tie rod to steering knuckle | Model 222 except code Z07 (Highest protection) except code Z19 (Pullman state sedan) except code Z31 (Pullman Guard state sedan) | BA46.40-P-1001-01M |
Shown on MODEL 222 without CODE M005 (4MATIC)
Shown on MODEL 222 without CODE M005 (4MATIC)
Shown on MODEL 222 without CODE M005 (4MATIC)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove center and front engine compartment lining | AR61.20-P-1105LF | |
| 2 | Detach corresponding front complete wheel | AR40.10-P-1102A | |

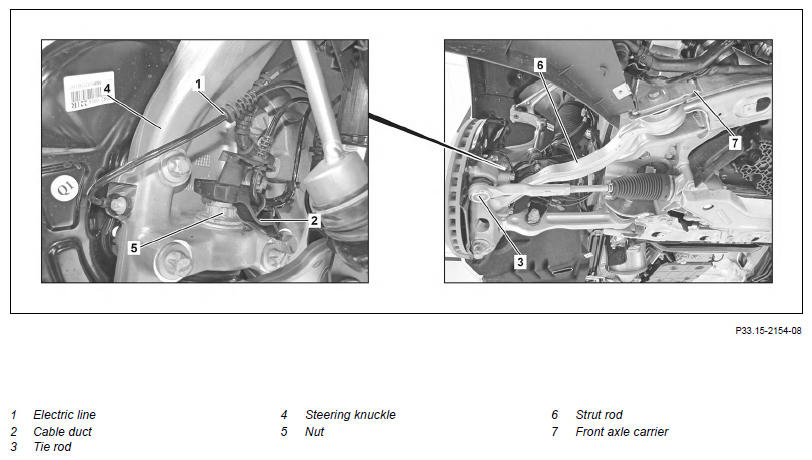

| 3 | Unhook electrical line (1) of front rpm sensor from cable duct (2) | Model 217 except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 4 | Detach cable duct (2) and place to one side | Model 217 except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 5 | Detach tie rod (3) from steering knuckle (4) | The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head or steering knuckle (4 will be damaged. |
|
| *BA46.40-P-1001-01M | |||

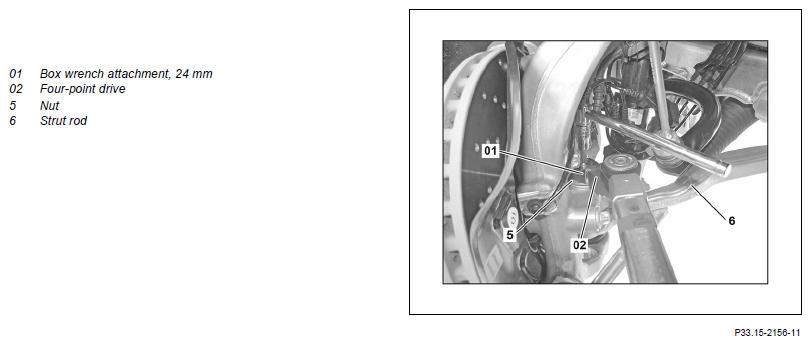

| 6 | Unscrew nut (5) from strut rod (6) on steering knuckle (4) | The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head or steering knuckle (4 will be damaged. |
|
| *BA33.20-P-1003-01T | |||

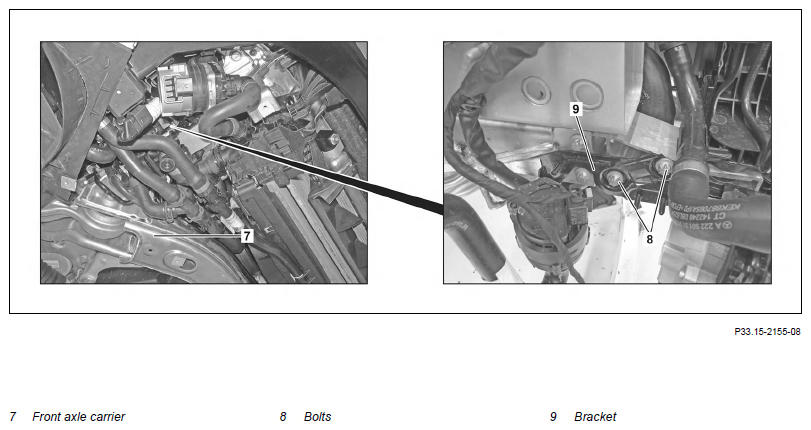

| 7 | Remove bolts (8) and detach bracket (9) with circulation pump and switchover valve, and place to one side | Model 217 with engine 157, 278 Model 222 with engine 157, 276, 278, 642 If installed and only when removing the right strut rod (6). |
|
| *BA20.10-P-1005-01S | |||
| *BA20.10-P-1011-01AA | |||
| *BA20.10-P-1006-01W | |||
| 8 | Detach strut rod (6) from front axle carrier (7) and remove strut rod (6) | *BA33.20-P-1004-01T | |
| Check | |||
| 9 | Check dust boot and ball head of strut rod (6) | If dust boot or ball head is damaged ↓ Replace strut rod (6) |
|
| 10 | Check condition and variant of elastomer bearing in strut rod (6) and whether elastomer bearing is damaged | In the event of damage, if a neutral (genuine) elastomer bearing is installed ↓ Replace strut rod (6) In the event of damage, if an elastomer bearing is installed for caster correction ↓ Press out/in elastomer bearing of strut rod (6) Model 217 except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| AR33.15-P-0160-02LF | |||
| 11 | Install in the reverse order |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA20.10-P-1005-01S | Bracket securing coolant pump/switchover valve to radiator support | Nm | 20 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 157 | Engine 278 | ||
|---|---|---|---|---|---|
| BA20.10-P-1006-01W | Bolt/nut, bracket for coolant pump/switchover valve to radiator support | M6 | Nm | 6 | 6 |
| M8 | Nm | 20 | 20 | ||
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA20.10-P-1011-01AA | Bolt/nut, bracket for coolant pump/switchover valve to radiator support | M6 | Nm | 6 |
| M8 | Nm | 20 | ||
WHEEL CONTROL, HUB
| Number | Designation | Model 217 | MODEL 222 except CODE Z07 | ||
|---|---|---|---|---|---|
| BA33.20-P-1003-01T | Nut, strut rod to steering knuckle | Stage 1 | Nm | 240 | 240 |
| Stage 2 | ∠° | - | - | ||
WHEEL CONTROL, HUB
| Number | Designation | MODEL 222 with CODE Z07 | ||
|---|---|---|---|---|
| BA33.20-P-1003-01T | Nut, strut rod to steering knuckle | Stage 1 | Nm | 240 |
| Stage 2 | ∠° | - | ||
WHEEL CONTROL, HUB
| Number | Designation | Model 217 | MODEL 222 except CODE Z07 | ||
|---|---|---|---|---|---|
| BA33.20-P-1004-01T | Bolt, strut rod to front axle carrier | Stage 1 | Nm | 100 | 100 |
| Stage 2 | ∠° | 180 | 180 | ||
WHEEL CONTROL, HUB
| Number | Designation | MODEL 222 with CODE Z07 | ||
|---|---|---|---|---|
| BA33.20-P-1004-01T | Bolt, strut rod to front axle carrier | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 180 | ||
TIE ROD
| Number | Designation | Model 217 | Model 222 except code Z07 (B7 armoring on special protection version) except code Z19 (Pullman government sedan) except code Z31 (Pullman Guard government sedan) |
||
|---|---|---|---|---|---|
| BA46.40-P-1001-01M | Nut, tie rod to steering knuckle | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 90 | 90 | ||
TIE ROD
| Number | Designation | Model 222 with code Z07 (B7 armoring on special protection version) Model 222 with code Z19 (Pullman government sedan) Model 222 with code Z31 (Pullman Guard government sedan) |
||
|---|---|---|---|---|
| BA46.40-P-1001-01M | Nut, tie rod to steering knuckle | Stage 1 | Nm | 70 |
| Stage 2 | ∠° | 90 | ||
