Remove/Install Inner Tie Rod With Axial Joint - AR46.40-P-0201LF

Model 217

Model 222

Shown on Model 222

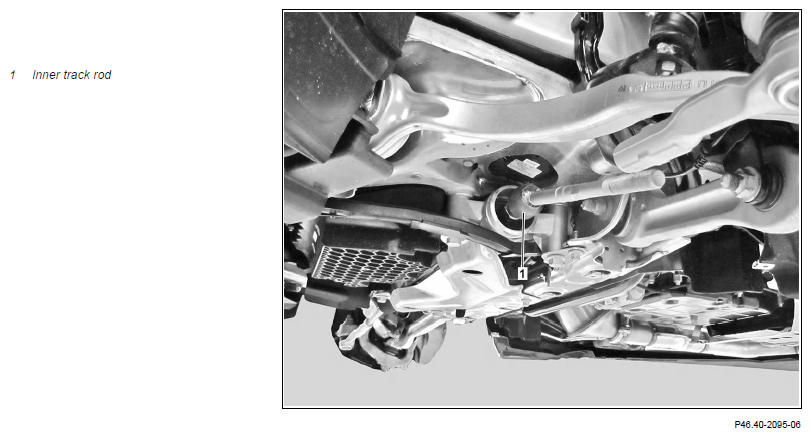

Fig 1: Inner Track/Tie Rod With Axial Joint Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bellows		AR46.40-P-9998LF
2	Unscrew inner tie rod (1)	Inner tie rod to rack-and-pinion steering	*BA46.40-P-1003-01M
		Open end wrench	Fig 2
3	Install in the reverse order

TIE ROD

Number	Designation		MODEL 217	MODEL 222
BA46.40-P-1003-01M	Inner tie rod to rack-and-pinion steering	Nm	110	110
