Remove/Install Additional Engine Radiator - AR20.20-P-3867MNM
Engine 177 In Model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNL | |

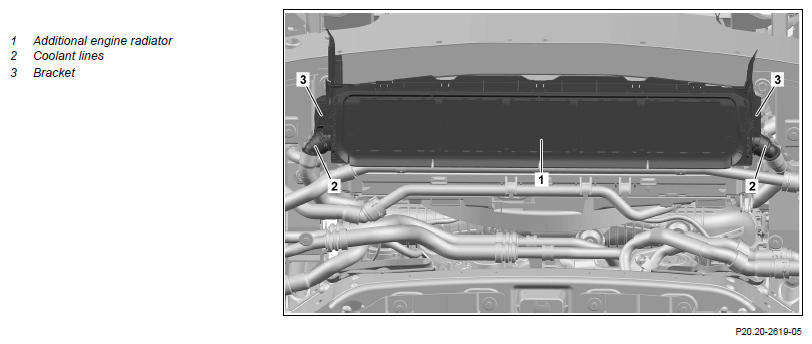

| 2 | Separate coolant line (2) at additional engine radiator (1), and seal openings with protective covers | Fig 2 | |
| 3 | Unclip retaining frame of additional engine radiator (1) at front and side at air duct segment | ||
| 4 | Unclip the retaining frame of the additional engine radiator (1) at the brackets (3) and remove along with the additional engine radiator (1) | ||
| 5 | Install in the reverse order. |
