Remove/Install Front Fire Extinguishing System Temperature Sensor - AR86.10-P-0126LFS
Model 222.1
With Code Z21 (Fire extinguishing system)

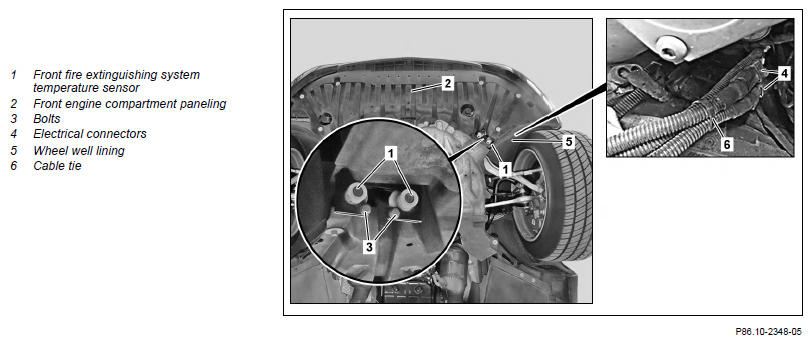

Fig 1: Front Fire Extinguishing System Temperature Sensors Components Location - Model 222.1 With Code Z21
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Unscrew bolts (3) and remove front fire extinguishing system temperature sensors (1) from bracket | ||
| 3 | Remove front engine compartment paneling (2) | AR61.20-P-1105LF | |
| 4 | Slightly press wheelhouse paneling (5) to side until electrical connectors (4) are accessible | ||
| 5 | Cut cable tie (6) | ||
| 6 | Disconnect electrical connectors (4) | ||
| 7 | Remove front fire extinguishing system temperature sensor (1) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Perform self-test for fire extinguishing system | AR86.10-P-0101-01LFS |
