Remove/Install Atomizer Nozzle Of Fire Extinguishing System - AR86.10-P-0118LFS
Model 222.1/9
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)
| Remove/install | |||

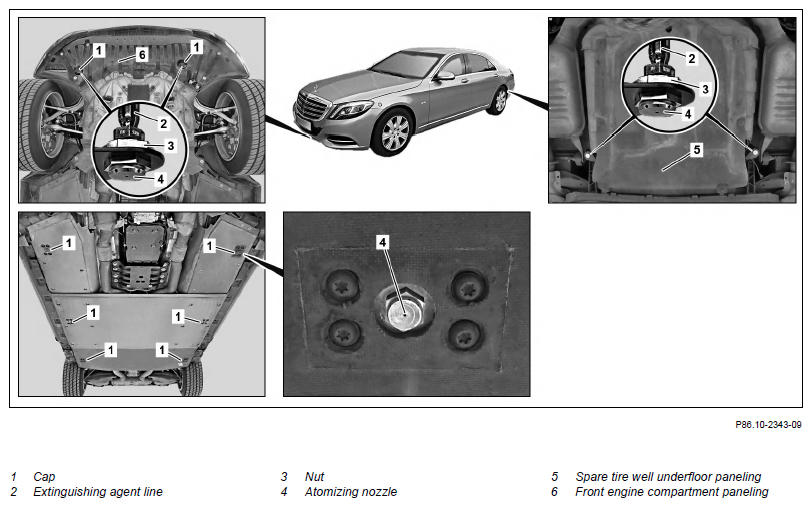

| 1 | Remove front engine compartment paneling (6) | When removing left or right spray nozzle (4) in engine compartment at bottom. | |
| AR61.20-P-1105LF | |||
| 2 | Remove corresponding cap (1) | ||
| 3.1 | Unscrew extinguishing agent line (2) from spray nozzle (4), unscrew nut (3) and remove spray nozzle (4) | When removing left or right spray nozzle (4) in bottom engine compartment and left or right spray nozzle (4) on spare tire well underfloor paneling (5). | |
| *BA86.10-P-1003-01B | |||
| 3.2 | Unscrew spray nozzle (4) | When removing spray nozzle (4) from nozzle holder on armor plate. | |
| *BA86.10-P-1005-01B | |||
| 4 | Install in the reverse order |
FIRE EXTINGUISHING SYSTEM
| Number | Designation | MODEL 222.1/9 with CODE Z07 and CODE Z21 | ||
|---|---|---|---|---|
| BA86.10-P-1003-01B | Threaded connections for extinguishing agent lines | Size 14 | Nm | 12 |
| Size 17 | Nm | - | ||
| Size 19 | Nm | - | ||
FIRE EXTINGUISHING SYSTEM
| Number | Designation | MODEL 222.1/9 with CODE Z07 and CODE Z21 | |
|---|---|---|---|
| BA86.10-P-1005-01B | Atomizer nozzle to nozzle holder | Nm | 9 |
