Remove/Install Circulation Pump For Low-Temperature Circuit - AR09.41-P-6926MNL
Engine 176 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNL | |

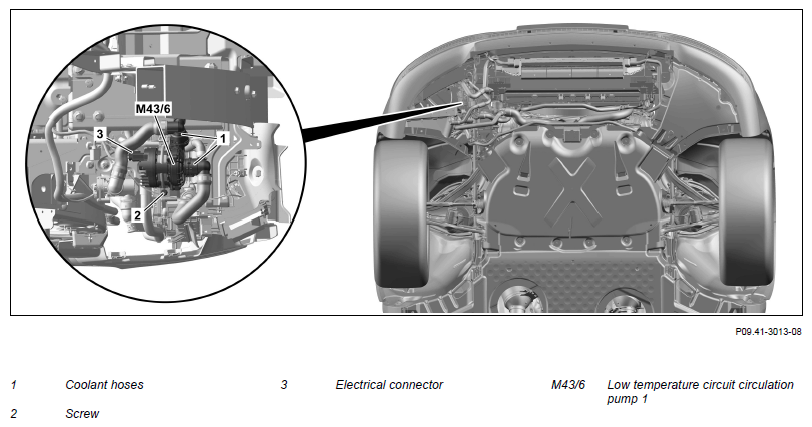

| 2 | Release and disconnect electrical connection (3) at low-temperature circuit circulation pump 1 (M43/6) | ||
| 3 | Remove coolant hoses (1) at low-temperature circuit circulation pump 1 (M43/6) | AR20.20-P-7441-01RQ | |
| 4 | Remove screw (2) from bracket | *BA20.10-P-1007-01ZA | |
| 5 | Remove low-temperature circuit circulation pump 1 (M43/6) | ||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 8 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 9 | Install upper engine cover |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA20.10-P-1007-01ZA | Nut/screw, low-temperature circuit pump/switchover valve retaining bracket to holder | Nm | 8 |
