Remove/Install Top Seal On Front Door Window Frame - AR72.10-P-1550LFS
Model 222
with code Z07 (B7 armoring on special protection version)
| Remove/install | |||
| Topical note | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |

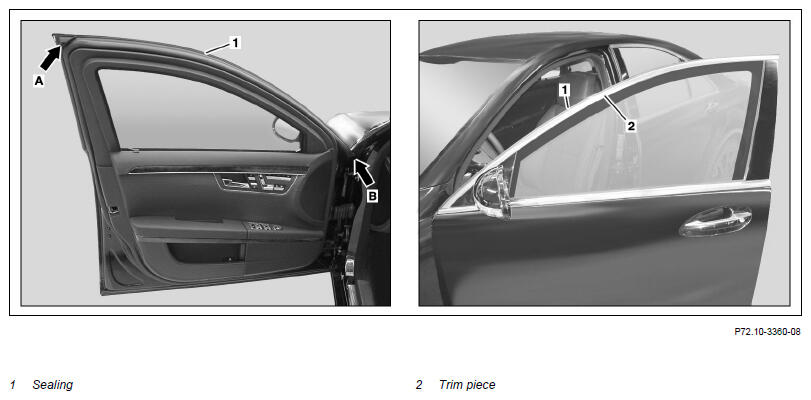

| 1 | Unclip trim piece (2) from window frame on front door from seal (1) | Carefully unclip trim piece (2). Otherwise the trim piece (2) can be damaged. |
|
| 2 | Detach seal (1) from window frame at top (arrow A) and front (arrow B) | ||
| 3 | Remove seal (1) toward outside from window frame | Ensure that sealing (1) is seated correctly. Otherwise wind noises can occur. |
|
| 4 | Install in the reverse order |
