Remove/Install Door Interior Actuating Mechanism On Rear Side Door - AR72.12-P-2310LF

Model 222

Courtesy of MERCEDES-BENZ USA

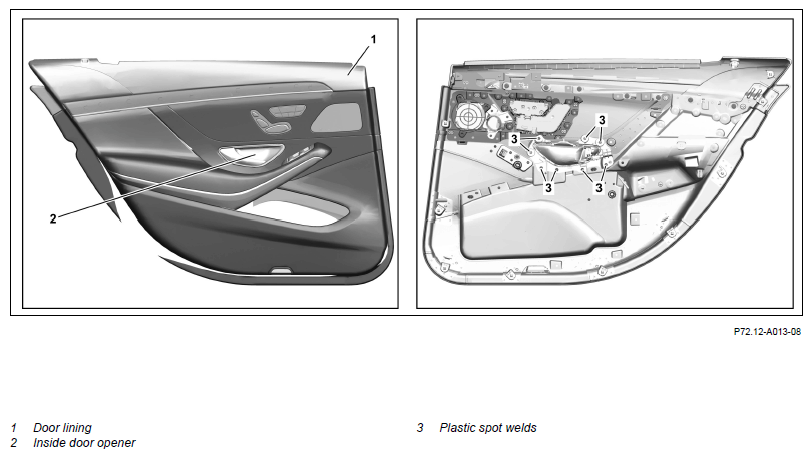

Shown on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.12-P-1010LF
2.1	Drill plastic spot welds (3) and remove inside door opener (2).	If the inside door opener (2) is attached using plastic spot welds (3).	AR72.00-P-0001-01LW
		: Replace drilled plastic spot welds (3) with bolts. Fasten inside door opener (2) with the screws and washers from the repair kit.
2.2	Remove screws and take off the inside door opener (2).	If the inside door opener (2) is attached using screws.
3	Install in the reverse order
