Adaptive Damping System Control Unit, Basic Function - GF32.32-P-9891A
Model all (CAR)

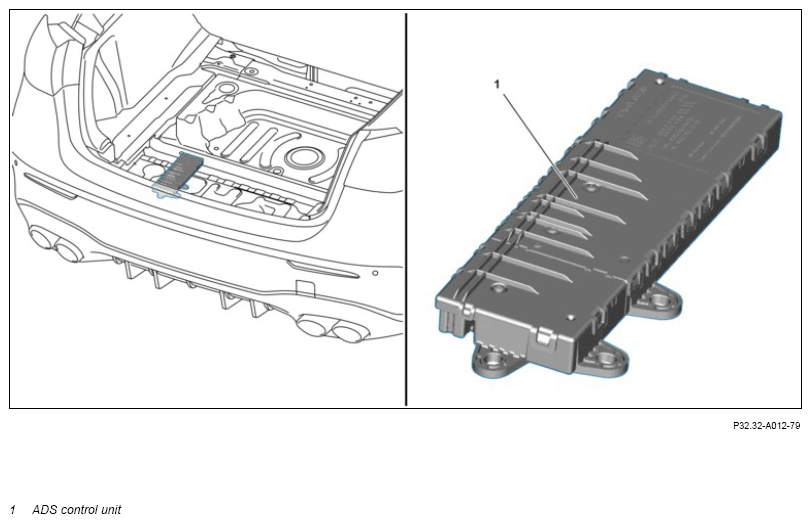

Fig 1: Adaptive Damping System Control Unit Components Location - Model All (Car) (Shown On Model 177)
Example illustration of model 177
Overview
This document contains information on:
- General
General
The ADS control unit actuates the damping valve units on the corresponding shock absorbers. This means that dampening can be adapted to the driving style and road surface condition.
| Additional basic functions | |||
| Level sensor, basic function | Model all (CAR) | GF32.31-P-2001A | |
| Damping valve unit, basic function | Model all (CAR) | GF32.32-P-2002A | |
| Component descriptions | |||
| Component description for adaptive damping system control unit | Model 223 with code 490 (Electrohydraulic suspension) |
GF32.32-P-1010A | |
| Model 243 | GF32.32-P-1010B | ||
| Model 206 | GF32.32-P-1010C | ||
| Model 297 | GF32.32-P-1010D |
