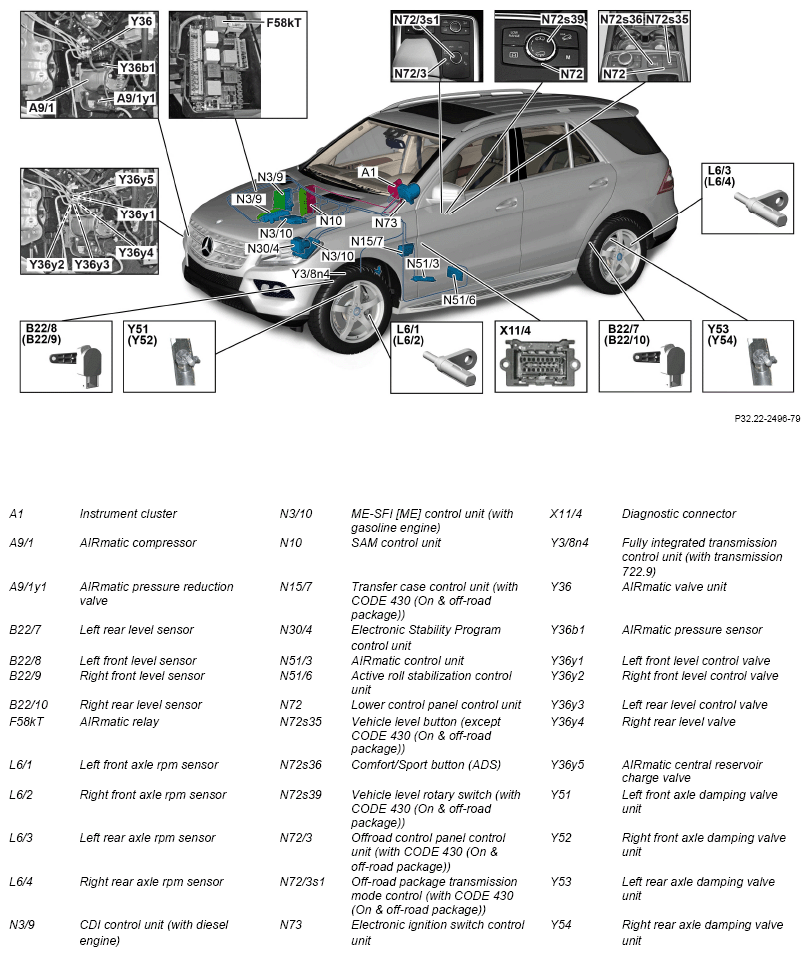

Overview Of Airmatic System Components - GF32.22-P-9998GR
MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS)))
Shows model 166.0
The ME-SFI control unit is installed at the following location (depending on the engine):
- Engine 276, on left of engine
- Engine 278 and 157, on center of engine
The CDI control unit is installed at the following location (depending on the engine):
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N15/7 |
GF28.19-P-3200VGC | |
| Component description for Electronic Stability Program control unit | MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N30/4 |
GF42.45-P-5119GR | |
| AIRmatic control unit, component description | N51/3 | GF32.22-P-5109GR | |
| Active roll stabilization control unit component description |
MODEL 166 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/6 |
GF32.34-P-5000GR | |
| Lower control panel control unit, component description | MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N72, N72s35, N72s36, N72s39 |
GF54.21-P-6060GR | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N723, N72/3s1 |
GF54.21-P-3520VGC | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) Y3/8n4 |
GF27.60-P-5165AHA | |
| AIRmatic, function description, contents | GF32.22-P-0998GR |
