Remove/Install Right Tie Rod - AR35.20-P-0011LW
Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487)
Model 253 (except 253.388/389/988/989/992/993)
Shown on model 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on AIRMATIC | Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with code 489 (AIRMATIC) Model 253 (except 253.388/389/988/989/992/993) with engine 177, 264, 274, 276, 642, 651 with code 489 (AIR BODY CONTROL) |
AH32.22-P-1000-02LW | |
| Remove/install | |||
| 1 | Shift transmission to position N or to idle. | ||
| 2 | Raise vehicle and fix in place on vehicle lift. | AR00.60-P-1006A | |
| 3 | Drain pressure of air suspension at rear axle using vehicle diagnosis system. | Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with code 489 (AIRMATIC) Model 253 (except 253.388/389/988/989/992/993) with engine 177, 264, 274, 276, 642, 651 with code 489 (AIR BODY CONTROL) |
|
| AD00.00-P-2000-04B | |||
| 4 | Perform power disconnect of high-voltage onboard electrical system. | Model 205.012/013/047/053/054/147/212/213/247/253 | AR54.10-P-1150LW |
| Model 253.311/353/354/911/953/954 | AR54.10-P-1150LVH | ||
| 5 | Remove rear wheels. | AR40.10-P-1102A | |
| 6 | Remove diagonal struts. | Model 205.4 (except 205.486/487) | |
| AR61.10-P-5142LWP | |||
| 7 | Remove necessary components of exhaust system. | Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) Model 253 (except 253.388/389/988/989/992/993) |
|
| Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with engine 626 | AR49.10-P-4952ORB | ||
| Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with engine 264 | AR49.10-P-4952MRI | ||
| Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with engine 654 | AR49.10-P-4952OLI | ||
| Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with engine 274.9, 276 | AR49.10-P-4952LW | ||
| Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with engine 651 | AR49.10-P-7100LWB | ||
| Model 253 (except 253.388/389/988/989/992/993) with engine 274.9, 276.8, 642, 651.9 | AR49.10-P-4952RF | ||
| 8 | Remove propeller shaft from rear axle differential, place to one side and fix in place. | Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) | AR41.10-P-0050LW |
| Model 253 (except 253.388/389/988/989/992/993) with engine 177, 264, 274, 276, 642, 651 | AR41.10-P-0050LWX | ||
| 9 | Remove level sensors with holders from rear axle carrier (3). | Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487), 253 (except 253.388/389/988/989/992/993) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487) with code 489 (AIRMATIC) Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL) |
|
| AR82.10-P-0005LW | |||

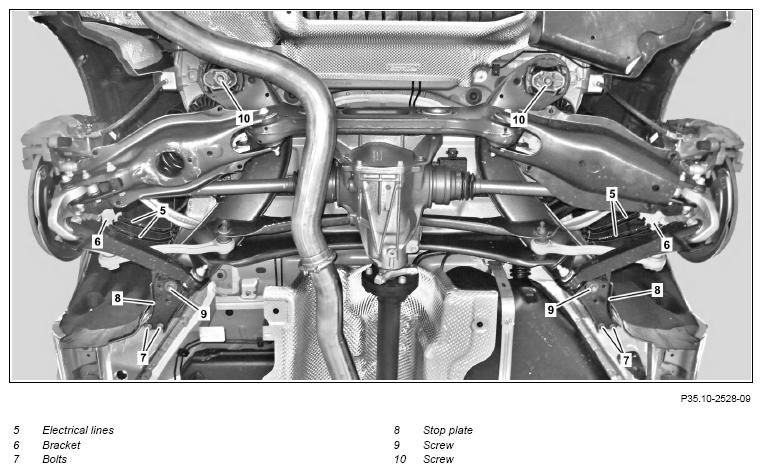

| 10 | Release left and right underfloor paneling in area of stop plates (8). | Model 205.0 (except 205.064/086/087), 205.1, 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387) Model 253 (except 253.388/389/988/989/992/993) |
|
| Model 205.0 (except 205.064/086/087), 205.1, 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387) Model 253 (except 253.388/389/988/989/992/993) with engine 177, 264, 274, 276, 642, 651 |
AR61.30-P-1001LW | ||
| 11 | Unhook electric lines (5) at right and left from holders (6). | ||
| 12 | Remove screws (7) from stop plates (8). | *BA35.10-P-1003-01H | |
| 13 | Support rear axle using an assembly mount and mounting plate. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 14 | Unscrew screws (9) and remove stop plates (8). | ||
| *BA35.10-P-1001-01H | |||
| 15 | Carefully lower rear axle at front. | ||

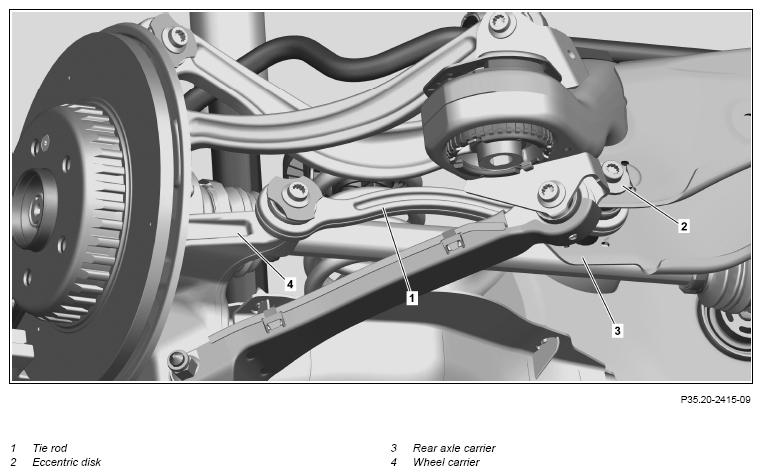

| 16 | Mark installation position of eccentric disk (2). | ||
| 17 | Remove tie rod (1) from rear axle carrier (3). | ||
| *BA35.20-P-1002-04M | |||
| Fig 1 | |||
| 18 | Detach tie rod (1) from wheel carrier (4) and remove. | *BA35.20-P-1001-04M | |
| Fig 1 | |||
| Check | |||
| 19 | Check tie rod (1) for condition and damage. | If a problem arises ↓ Replace tie rod (1). |
|
| 20 | Install in the reverse order. | ||
| 21 | Perform chassis alignment. | AR40.20-P-0200LW |
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA35.10-P-1001-01H | Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly | Stage 1 | Nm | 100 | 100 |
| Stage 2: Loosen | ∠° | 180 | 180 | ||
| Stage 3 | Nm | 100 | 100 | ||
| Stage 4 | ∠° | 90 | 90 | ||
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.10-P-1003-01H | Bolt, stop plate to body | Nm | 35 | 35 |
TIE ROD
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA35.20-P-1001-04M | Bolt, tie rod to wheel carrier | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 90 | 90 | ||
TIE ROD
| Number | Designation | Model 205 | Model 253 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1002-04M | Self-locking nut, tie rod to rear axle carrier | When removing the tie rod | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 90 | 90 | |||
| When adjusting the toe | Nm | 110 | 110 | |||
