Remove/Install Wheel And Tire Assemblies - AR40.10-P-1102A

Model 205, 213, 217, 222, 238, 253, 257, 290, 293

MODIFICATION NOTES

18.06.2019 "Check manufacturing date" added. Step 6
G12937841Courtesy of MERCEDES-BENZ USA
G12937842Courtesy of MERCEDES-BENZ USA
G12937843Courtesy of MERCEDES-BENZ USA
  Information on tires/rims   AH40.10-P-9411-01A
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Raise vehicle.   AR00.60-P-1006A
2.1 Remove wheel trim. If installed.
2.2 Remove screw-on AMG hub covers in center lock design. If installed.
    SPECIAL TOOL Socket wrench bit Fig 2
3 Remove wheel and tire assemblies (1). NOTES
Model 205, 213, 217, 222, 253, 290, 293 with code B07 (Ceramic brake system)

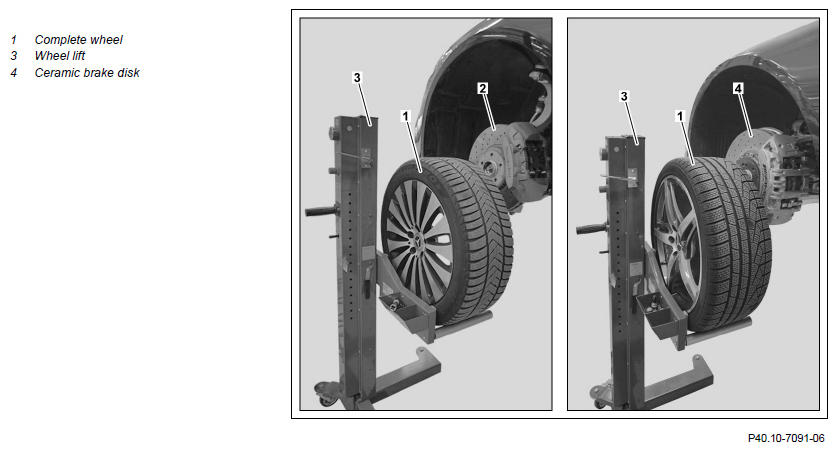

For vehicles with ceramic brake disk (4), always
use a wheel lift dolly (3).
Otherwise, the ceramic brake disk (4) will be damaged.
IMPORTANTOnly for GERMANY ONLY
Use a wheel lift dolly (3) with a rim size from 17
IMPORTANTCommercially available devices/tools
Wheel lift
    SPECIAL TOOL Socket wrench Fig 1
INSPECT Check
4 Check the wheel bolt connection components. IMPORTANT Before mounting a wheel and tire assembly (1), remove minor soiling using a rag. Apply heat-resistant lubricating paste sufficiently on wheel hub.
    Paste, hot lubrication 1 kg, DBL 6879.20 *BR00.45-Z-1005-06A
    If problems occur,
↓
clean wheel bolt connection components and protect against corrosion.		 AR40.10-P-1100-02A
    If enough soiling is present,
↓
carry out further cleaning and anti-corrosion protection measures.		 AR40.10-P-1100-02A
5 Check tires of wheel and tire assemblies (1) for wear and damage.
REFER TO MAINTENANCE     AP40.10-P-4051EW
6 Check manufacturing date of tires on front and rear axle. Model 222
with code Z07 (Top protection)		 AR40.10-P-0002-01LF
INSTALLING Install
7 Mount wheel and tire assemblies (1). NOTES
Model 205, 213, 217, 222, 253, 290, 293
with code B07 (Ceramic brake system)
For vehicles with ceramic brake disk (4), always use a wheel lift dolly (3).
Otherwise, the ceramic brake disk (4) will be damaged.
IMPORTANTOnly for GERMANY ONLY
Use a wheel lift dolly (3) with a rim size from 17
IMPORTANTCommercially available devices/tools
Wheel lift
IMPORTANTCommercially available devices/tools
Torsion bar

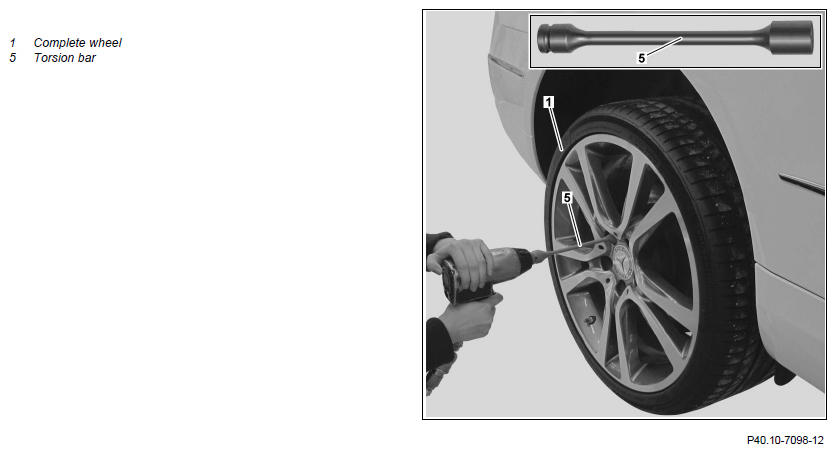

    IMPORTANT Use torsion bar (5) for 2nd stage (initial torque).

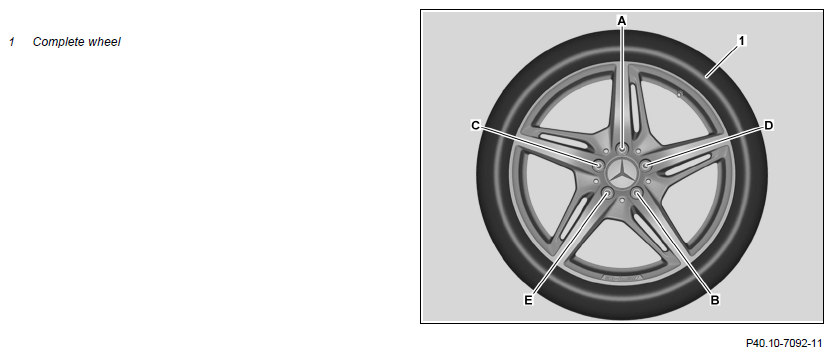

IMPORTANT Observe tightening sequence (A, B, C, D, E and the multistage tightening torque of the wheel bolts.
    TORQUE SPECIFICATION Model 205, 217, 253, 293 BA40.10-P-1001-01P
    Model 222
except code Z07 (Top protection)
Model 222
with code Z07 (Top protection) Wheel bolt
TORQUE SPECIFICATION Model 213Wheel bolt to light alloy wheel		 *BA40.10-P-1002-01F
    TORQUE SPECIFICATION Model 213 Wheel bolt to steel wheel *BA40.10-P-1001-01F
    TORQUE SPECIFICATION Model 238 Wheel bolt to light alloy wheel *BA40.10-P-1001-01N
    TORQUE SPECIFICATION Model 257, 290 Wheel bolt *BA40.10-P-1001-01O
    SPECIAL TOOL Socket wrench Fig 1
8.1 Mount wheel trim. If installed.
NOTES
Check for firm seating of wheel trim on rim and for correct positioning of wheel trim relative to valve.
Otherwise, the wheel trim will be lost or the valve will be damaged.
8.2 Mount screw-on AMG hub covers in center lock design. If installed.
TORQUE SPECIFICATION Model 213 Aluminum wheel hub cover to light alloy wheel		 *BA40.10-P-1003-01F
    TORQUE SPECIFICATION Model 257
Model 290 Aluminum wheel hub cover to light alloy wheel		 *BA40.10-P-1002-01O
    TORQUE SPECIFICATION Model 205, 217, 253
Model 222
except code Z07 (Top protection)		 BA40.10-P-1002-01P
    Model 222
with code Z07 (Top protection)
Model 293Aluminum wheel hub cover to light
alloy wheel
    SPECIAL TOOL Socket wrench bit Fig 2
9 Check tire pressure on wheel and tire assemblies (1). In the event of a problem,
↓
correct tire pressure on wheel and tire assemblies (1).		 AP40.15-P-4061A
10 Lower vehicle.   AR00.60-P-1006A
11 Check maximum speed limitation in instrument cluster, correct if necessary.
Limited maximum speed for winter tires with speed index V		 IMPORTANT Note tire speed rating.
If the maximum permissible speed of an M+S tire is lower than the maximum permissible speed of the vehicle.
↓
Apply corresponding adhesive label in the driver's visual field.		 AH40.10-P-1020-03A
WHEELS

Number Designation Model 213
BA40.10-P-1001-01F Wheel bolt to steel wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 130
WHEELS

Number Designation Model 238
BA40.10-P-1001-01N Wheel bolt to light alloy wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
WHEELS

Number Designation Model 257 Model 290
BA40.10-P-1001-01O Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 150
WHEELS

Number Designation Model 205 Model 217
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 130 150
WHEELS

Number Designation Model 222 except code Z07 (Top protection) Model 222 with code Z07 (Top protection)
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 180
WHEELS

Number Designation Model 253 Model 293
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 150
WHEELS

Number Designation Model 213
BA40.10-P-1002-01F Wheel bolt to light alloy wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
WHEELS

Number Designation Model 257 Model 290
BA40.10-P-1002-01O Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 205 Model 217
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 222 except code Z07 (Top protection) Model 222 with code Z07 (Top protection)
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 253 Model 293
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 -
WHEELS

Number Designation Model 213
BA40.10-P-1003-01F Aluminum wheel hub cover to light alloy wheel Nm 27
Fig 1: Identifying Socket Wrench (199 589 01 09 00)
G07414477Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Socket Wrench Bit (222 589 00 09 00)
G12618469Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
