Remove/Install Upper Control Panel Control Unit - AR54.21-P-1262LW
Model 205, 253
Shown on model 205 with code 427 (7G-TRONIC)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove climate control operating unit (N58/1) | AR83.30-P-6630LW | |

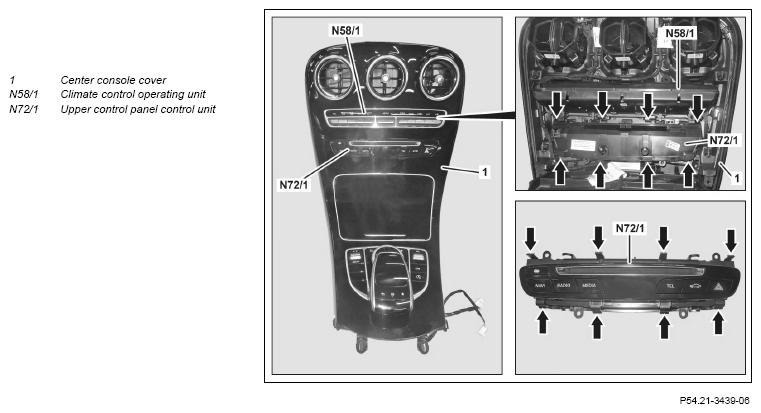

| 2 | Unclip upper control panel control unit (N72/1) from center console cover (1) (arrows) | Figure | |
| 3 | Detach analog clock from upper control panel control unit (N72/1) | Model 205 with code 246 (Analogue clock) Only when replacing upper control panel control unit (N72/1). |
AR54.30-P-1000LW |
| 4 | Install in the reverse order |
